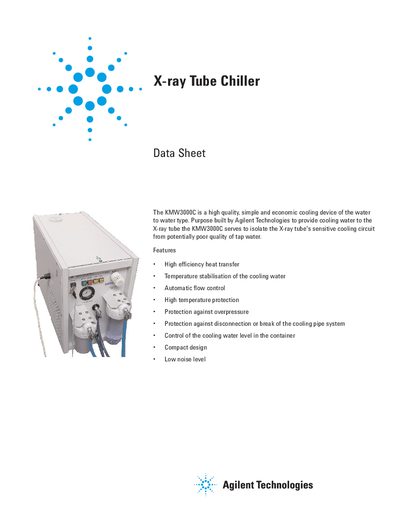

Agilent KMW3000C X-ray Tube Chiller Datasheet
Datasheet 2 pages · 174 KB · EN
The Agilent KMW3000C is a compact, high-efficiency water-to-water chiller designed to provide cooling water to X-ray tubes. It isolates the tube's sensitive cooling circuit from tap water by filtering it through an external 50 pm fiber filter before it enters the unit. The device includes a constant flow pump and a temperature-modulated valve to stabilize the temperature of the experimental setup while optimizing water consumption.
Read onlineAgilent KMW3000C specifications
| Cooling ability | 3000 W |
|---|---|
| Flow rate | 4.2 l/min |
| Pressure | 3-8 bar adjustable |
| Temperature stability | +1°C |
| Tap water consumption | 0.6 l/min/kW |
| Tap water pressure | 0.5-5 bar |
| Maximum mains current | 12A |
| Main fuse | 6.3A |
| Ground terminal | 2.5 min Cu |
| Power supply | 230 V, 1.24 50 Hz |
| Dimensions | 75 x 38 x 54 (Lx Wx H) cm |
All Agilent KMW3000C documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
Other documents 1
Questions answered in these manuals
What type of cooling device is the KMW3000C?
It is a high quality, simple and economic cooling device of the water to water type.
What is the purpose of the KMW3000C?
It serves to isolate the X-ray tube's sensitive cooling circuit from potentially poor quality of tap water.
