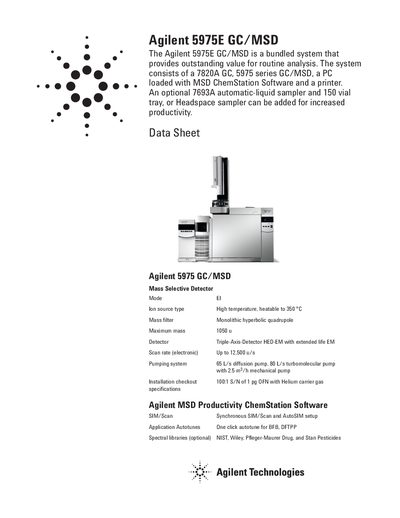

Agilent 5975E GC/MSD Data Sheet
The Agilent 5975E GC/MSD is a bundled system designed for routine analysis, consisting of a 7820A Gas Chromatograph, a 5975 series GC/MSD, a PC loaded with MSD ChemStation Software, and a printer. Optional accessories such as an automatic-liquid sampler or Headspace sampler can be added to increase productivity.
The system includes a Mass Selective Detector with a monolithic hyperbolic quadrupole mass filter and a Triple-Axis-Detector HED-EM. The bundled 7820A Gas Chromatograph features an S/SL Inlet, a column oven with electronic pneumatics control, and supports various detectors including FID, TCD, ECD, and NPD.
Agilent 5975E specifications
| Mass filter type | Monolithic hyperbolic quadrupole |
|---|---|
| Maximum mass | 1060 u |
| Scan rate (electronic) | Up to 12,500 u/s |
| Pumping system | 65 L/s diffusion pump, 80 L/s turbomolecular pump with 2.5 m3/h mechanical pump |
| Installation checkout | 100:1 S/N of 1 pg OFN with Helium carrier gas |
| Column oven maximum temperature | 425 °C |
| Heated zones | Five total (two inlets, two detectors, and one auxiliary) |
| GC Dimensions | 49 cm (height) x 56 cm (width) x 51 cm (depth) |
| MSD Dimensions | 40.8 cm (height) x 29.8 cm (width) x 54 cm (depth) |
Source: Agilent 5975E GC/MSD Data Sheet
All Agilent 5975E documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What software is included with the Agilent 5975E GC/MSD?
The system includes a PC loaded with MSD ChemStation Software.
Which detectors are available for the 7820A Gas Chromatograph?
Available detectors include Flame ionization detector (FID), Thermal conductivity detector (TCD), Electron capture detector (ECD), and Nitrogen phosphorous detector (NPD).
What types of labs is the Agilent 7820A GC designed for?
It is ideal for small- and medium-sized labs that are primarily concerned with routine analyses using standard GC methods.
What components are included in the bundled Agilent 5975E GC/MSD system?
The system includes a split/splitless GC inlet, essential MS supplies such as a low-bleed column, and pre-loaded MSD ChemStation software.
