The NE/SE5514 family of quad operational amplifiers sets new standards in bipolar quad amplifier performance. The amplifiers feature low input bias current and low offset voltages. Pinout is identical to LM324/LM348 which facilitates direct product substitution for improved system performance in dual supply applications. Output characteristics are similar to a µA741 with improved slew and drive capability.

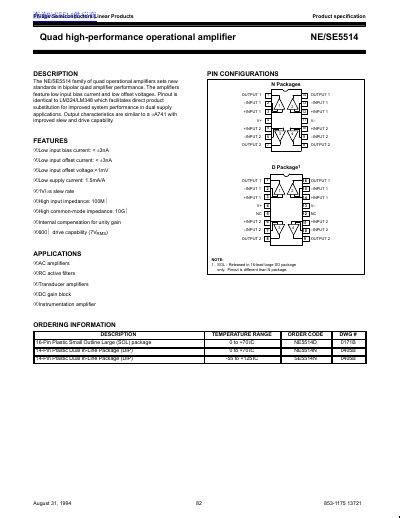

This document is a product specification datasheet for the Philips NE/SE5514 family of quad operational amplifiers. It highlights features such as low input bias current, low offset voltage, and high input impedance, noting that the pinout is identical to the LM324/LM348 for direct substitution. The device is designed for applications including AC amplifiers, RC active filters, and instrumentation amplifiers.
| Input offset voltage | <1mV |
|---|---|
| Input bias current | <+3nA |
| Supply current | 1.5mA/A |
| Slew rate | 1V/us |
| Input resistance differential | 100MQ |
| Common-mode impedance | 10GQ |
| Supply voltage (Max) | +16 V |
| Operating temperature (NE5514) | 0 to +70 °C |
| Operating temperature (SE5514) | -55 to +125 °C |
| Unity gain bandwidth | 3 MHz |
The amplifier is suitable for AC amplifiers, RC active filters, transducer amplifiers, DC gain blocks, and instrumentation amplifiers.
Yes, the pinout is identical to the LM324/LM348, which facilitates direct product substitution.
The absolute maximum rating for supply voltage is +16 V.
