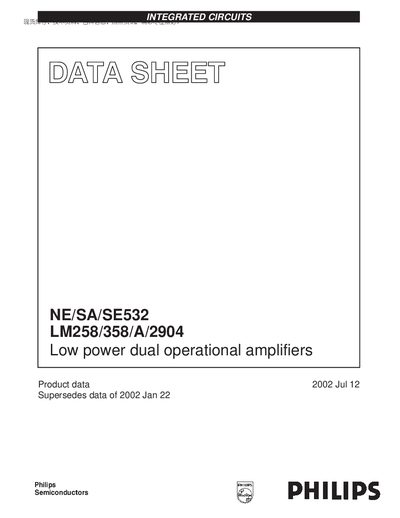

NE/SA/SE532 LM258/358/A/2904 is a low power dual operational amplifier, which has internally frequency compensation, can be powered by a single supply, and has a wide working voltage range from ±1.5 VDC to ±15 VDC. It has low power consumption, only 400 µA
The Philips NE/SA/SE532 series includes low‑power dual operational amplifiers LM258, LM358, LM2904 and variants. They are internally frequency‑compensated, operate from a single supply (3 V to 30 V) or dual supplies (+1.5 V to +15 V), and feature low supply current drain, low input bias current and temperature‑compensated parameters.
The document provides ordering codes for multiple package types (SO, DIP, TSSOP), absolute maximum ratings, DC electrical characteristics, typical performance curves, and example application circuits. It also contains dimensional data, notes on handling, and the standard Philips Semiconductors data‑sheet status disclaimer.
| Supply voltage range (single) | 3 V to 30 V |
|---|---|
| Supply voltage range (dual) | +1.5 V to +15 V |
| Supply current drain | 400 µA typical |
| Input bias current | 45 nA typical |
| Input offset voltage | 2 mV typical |
| Unity‑gain bandwidth | 1 MHz typical |
| Maximum output current | ≈40 mA |
The absolute maximum supply voltage is 32 V (or +16 V) for the device.
Typical supply current is about 400 µA, essentially independent of supply voltage.
