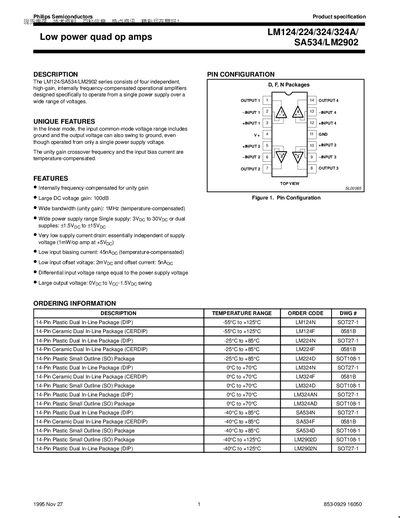

Philips Semiconductors LM124/224/324/324A/SA534/LM2902 Product Specification
This document is a product specification sheet for the Philips Semiconductors Low Power Quad Op Amps series. It covers multiple part numbers: LM124/224/324/324A, SA534, and LM2902.
The datasheet details unique features such as internal frequency compensation for unity gain operation and a wide power supply range from 3V to 30V single supply. It provides comprehensive DC electrical characteristics tables comparing parameters like offset voltage, input bias current, and common-mode rejection ratio across different temperature ranges.
Philips SA534 specifications
| Large DC voltage gain | 100dB |
|---|---|
| Unity gain bandwidth | 1MHz |
| Supply current drain | 1mA/op amp at +5Vpc |
| Input biasing current | 45nApc |
| Supply voltage limit | 3Vpc to 30Vpc (single) |
Source: Philips Semiconductors LM124/224/324/324A/SA534/LM2902 Product Specification
All Philips SA534 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can these op amps operate from a single power supply?
Yes, they are designed to operate from a single power supply over a wide range of voltages.
From: Philips Semiconductors LM124/224/324/324A/SA534/LM2902 Product Specification
How much current can the output source when shorted to ground?
The maximum output current is approximately 40 mA, independent of the magnitude of Vcc.
From: Philips Semiconductors LM124/224/324/324A/SA534/LM2902 Product Specification
What supply voltage range do these op‑amps support?
They operate from a single supply of 3 V to 30 V, or dual supplies of ±1.5 V to ±15 V.
From: Philips LM124/LM224/LM324/LM324A/SA534/LM2902 Datasheet
What is the maximum output current?
The maximum output current is approximately 40 mA.
From: Philips LM124/LM224/LM324/LM324A/SA534/LM2902 Datasheet
What is the unity‑gain bandwidth of these op‑amps?
The unity‑gain bandwidth is 1 MHz.
From: Philips LM124/224/324/324A/SA534/LM2902 Low Power Quad Op Amp Datasheet
What is the maximum supply voltage allowed?
The devices can tolerate up to 32 V (or +16 V) supply voltage.
From: Philips LM124/224/324/324A/SA534/LM2902 Low Power Quad Op Amp Datasheet
