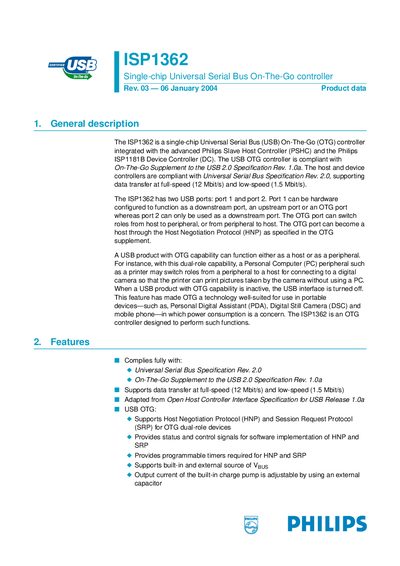

Philips ISP1362 USB On-The-Go Controller Datasheet
The ISP1362 is a single‑chip USB On‑The‑Go controller that integrates a Philips Slave Host Controller and a Philips ISP1181B Device Controller. It complies with the USB 2.0 specification and the OTG supplement, supporting both full‑speed (12 Mbit/s) and low‑speed (1.5 Mbit/s) transfers.
The device offers two USB ports, configurable port 1 (downstream, upstream or OTG) and a downstream‑only port 2, up to 14 programmable endpoints, a 16‑bit data bus with 10 Mbyte/s host‑to‑device transfer, operation at 3.3 V, and temperature range –40 °C to +85 °C. It is supplied in 64‑pin LQFP and TFBGA packages.
Philips ISP1362 specifications
| USB transfer speeds | Full‑speed 12 Mbit/s, Low‑speed 1.5 Mbit/s |
|---|---|
| Operating temperature range | −40 °C to +85 °C |
| Supply voltage | 3.3 V |
| Number of USB ports | Two ports (port 1 configurable, port 2 downstream only) |
| Port 2 configuration | Downstream only |
| Programmable USB endpoints | Up to 14 |
| Data bus width | 16‑bit |
| Host‑to‑device transfer rate | 10 Mbyte/s |
