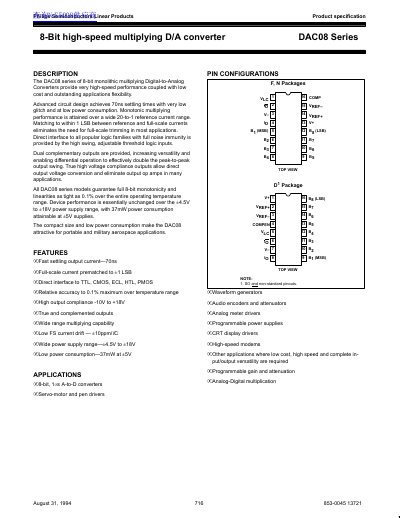

Philips DAC08 Series 8-Bit High-Speed Multiplying D/A Converter Datasheet
The DAC08 series of 8-bit monolithic multiplying Digital-to-Analog Converters provide very high-speed performance coupled with low cost and outstanding applications flexibility. Advanced circuit design achieves 70ns settling times with very low glitch and at low power consumption. Monotonic multiplying performance is attained over a wide 20-to-1 reference current range.
Read onlinePhilips DAC08 specifications
| Settling time | 70ns |
|---|---|
| Relative accuracy | 0.1% maximum |
| Output voltage compliance | -10V to +18V |
| Power supply range | ±4.5V to ±18V |
| Power consumption | 37mW |
| Logic interface | TTL, CMOS, ECL, HTL, PMOS |
Source: Philips DAC08 Series 8-Bit High-Speed Multiplying D/A Converter Datasheet
All Philips DAC08 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the settling time of the DAC08?
The device achieves 70ns settling times with very low glitch.
From: Philips DAC08 Series 8-Bit High-Speed Multiplying D/A Converter Datasheet
What is the maximum relative accuracy over the temperature range?
The relative accuracy is 0.1% maximum over the temperature range.
From: Philips DAC08 Series 8-Bit High-Speed Multiplying D/A Converter Datasheet
What is the temperature range for DAC08F and DAC08A models?
The operating temperature range is -55°C to +125°C.
From: Philips DAC08 Series 8-Bit Multiplying D/A Converter Product Specification
What logic families can the DAC08 series interface with directly?
It provides direct interface to TTL, CMOS, ECL, HTL, and PMOS.
From: Philips DAC08 Series 8-Bit Multiplying D/A Converter Product Specification
