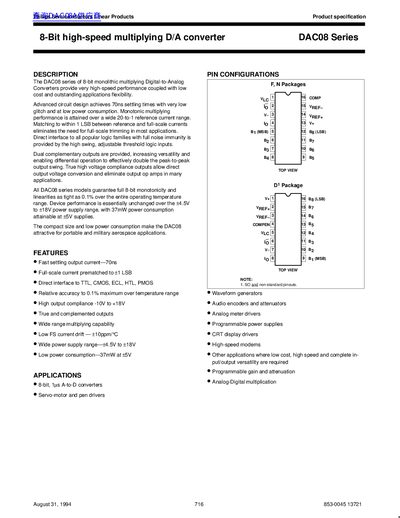

The Philips DAC08 series of 8-bit high-speed multiplying digital-to-analog converters have low cost, outstanding applications flexibility and high speed.
The Philips DAC08 series consists of 8-bit monolithic multiplying Digital-to-Analog Converters designed for very high-speed performance and low power consumption. These devices feature advanced circuit design achieving 70ns settling times with low glitch energy, ensuring monotonicity over a wide reference current range.
| Resolution | 8 Bits |
|---|---|
| Settling time | 70ns typical |
| Relative accuracy | +0.1% to +0.39% FS |
| Output voltage compliance | -10V to +18V |
| Power supply range | +4.5V to +18V |
| Low power consumption | 37mW at +5V |
The operating temperature range is -55°C to +125°C.
It provides direct interface to TTL, CMOS, ECL, HTL, and PMOS.
Yes, dual complementary outputs are provided for differential operation.
