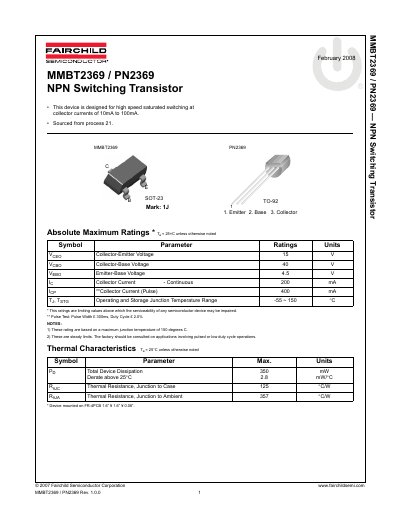

Fairchild Semiconductor MMBT2369 NPN Switching Transistor Datasheet
This document provides design specifications for the MMBT2369 NPN switching transistor, designed for high-speed saturated switching at collector currents between 10mA and 100mA. The device is available in SOT-23 and TO-92 packages.
Read onlineFairchild MMBT2369 specifications
| Collector Current (Continuous) | 200 mA |
|---|---|
| Operating Junction Temperature Range | -55 ~ 150 °C |
| Total Device Dissipation | 350 mW |
| DC Current Gain (Min) | 40 |
| Collector-Emitter Saturation Voltage | 0.25 V |
| Storage Time | 13 ns |
Source: Fairchild Semiconductor MMBT2369 NPN Switching Transistor Datasheet
All Fairchild MMBT2369 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous collector current for this transistor?
The device supports a continuous collector current of up to 200 mA.
From: Fairchild Semiconductor MMBT2369 NPN Switching Transistor Datasheet
How long can the pulse width be during testing?
Pulse tests allow for a maximum pulse width of 300 ms.
From: Fairchild Semiconductor MMBT2369 NPN Switching Transistor Datasheet
What is the continuous collector current rating?
The continuous collector current rating is 200 mA.
From: Fairchild PN2369A/MMBT2369A NPN Switching Transistor Datasheet
What is the operating temperature range?
The operating and storage junction temperature range is -55 to +150 °C.
From: Fairchild PN2369A/MMBT2369A NPN Switching Transistor Datasheet
