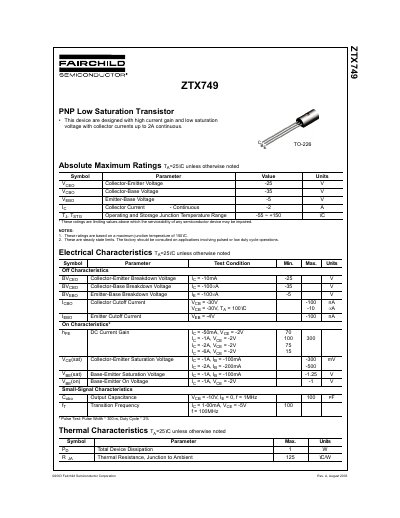

Fairchild ZTX749 PNP Low Saturation Transistor Datasheet
The document is a technical specification sheet for the ZTX749, a PNP low saturation transistor designed for high current gain and low saturation voltage. It supports continuous collector currents up to 2A. Key electrical parameters include a maximum collector-emitter breakdown voltage of -25V and a transition frequency (fT) of 100 MHz at 1 mA.
Read onlineFairchild ZTX749 specifications
| Collector-Emitter Voltage (VCEO) | -25 V |
|---|---|
| Collector Current (Continuous) | -2 A |
| Operating and Storage Junction Temperature Range | -55 ~ +150 °C |
| Total Device Dissipation (PD) | 1 W |
Source: Fairchild ZTX749 PNP Low Saturation Transistor Datasheet
All Fairchild ZTX749 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum continuous collector current?
The device supports a maximum continuous collector current of -2 A.
From: Fairchild ZTX749 PNP Low Saturation Transistor Datasheet
Is this transistor suitable for life support devices?
No, Fairchild's products are not authorized for use as critical components in life support devices or systems without express written approval.
From: Fairchild ZTX749 PNP Low Saturation Transistor Datasheet
What is the maximum collector current for the ZTX749A?
The device supports collector currents up to 2A continuous.
From: Fairchild Semiconductor ZTX749A PNP Low Saturation Transistor Datasheet
What is the package type for this transistor?
The transistor is packaged in a TO-226 case.
From: Fairchild Semiconductor ZTX749A PNP Low Saturation Transistor Datasheet
