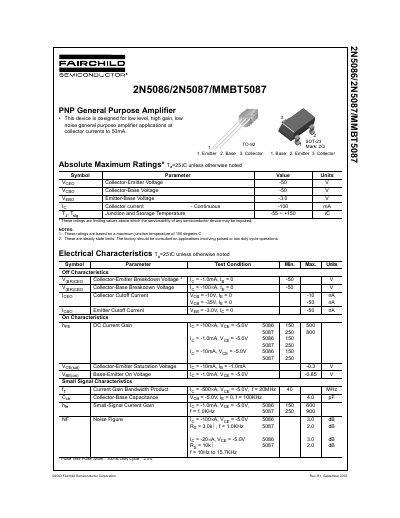

Fairchild Semiconductor 2N5086/2N5087/MMBT5087 PNP General Purpose Amplifier Datasheet
This document is a technical datasheet for the Fairchild Semiconductor 2N5086, 2N5087, and MMBT5087 PNP general purpose amplifiers. The device is designed for low-level, high-gain, low-noise applications with collector currents up to 50mA. It is available in TO-92 and SOT-23 packages.
Read onlineFairchild 2N5086 specifications
| DC Current Gain (5086) | 150 to 500 |
|---|---|
| DC Current Gain (5087) | 250 to 800 |
| Noise Figure (5087) | 2.0 dB |
Source: Fairchild Semiconductor 2N5086/2N5087/MMBT5087 PNP General Purpose Amplifier Datasheet
All Fairchild 2N5086 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the package types available for this amplifier?
The device is available in TO-92 and SOT-23 packages.
From: Fairchild Semiconductor 2N5086/2N5087/MMBT5087 PNP General Purpose Amplifier Datasheet
What is the noise figure for the 2N5087 model?
The noise figure for the 2N5087 is 2.0 dB.
From: Fairchild Semiconductor 2N5086/2N5087/MMBT5087 PNP General Purpose Amplifier Datasheet
What are the DC current gain ranges for the 2N5086 and 2N5087?
The 2N5086 has a gain of 150 to 500, while the 2N5087 ranges from 250 to 800.
