The AD8517 is a 7 MHz rail-to-rail low voltage operational amplifier designed for single supply operation. It features wide bandwidth, low offset voltage, rail-to-rail output and input, and low power consumption.

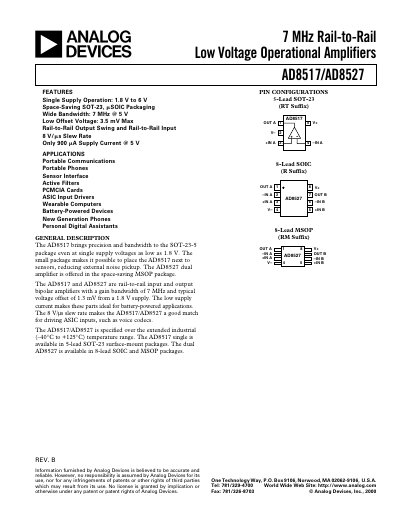

The AD8517 single‑supply op‑amp and the dual‑amplifier AD8527 are designed for low‑voltage, rail‑to‑rail operation, offering a 7 MHz gain‑bandwidth product and low offset voltage. They are supplied in compact SOT‑23‑5, SOIC‑8, and MSOP‑8 packages for space‑constrained designs.
The document provides detailed electrical characteristics, absolute maximum ratings, typical performance curves, and application examples such as microphone pre‑amplifiers, capacitive‑load driving, and telephone line interfaces. It also includes ordering information and a SPICE macro‑model for circuit simulation.
| Supply Voltage Range | 1.8 V to 6 V |
|---|---|
| Input Bias Current | 450 nA |
| Gain Bandwidth Product | 7 MHz |
The devices are rated for a maximum supply voltage of 6 V.
Yes, it can drive up to 400 pF at unity gain and larger capacitances at higher gains, with recommended compensation techniques.
A SPICE macro‑model for the AD8517 is provided on the Analog Devices website.
