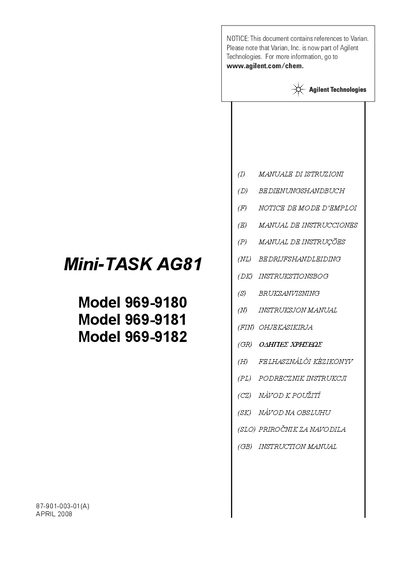

Agilent Technologies Mini-TASK AG81 969-9180 Manual
The document is a multilingual user manual (English, Italian, German, French, Spanish, Portuguese, Dutch, Danish, Norwegian, Finnish, Greek, Hungarian, Polish, Czech, Slovak, Slovenian) for the Agilent Mini-TASK AG81 series of integrated vacuum pumps. The text covers safety warnings regarding high-speed rotors and static electricity, storage conditions, and unpacking procedures.
The manual details the installation process, including inlet screen and vibration isolator setup, as well as electrical connections and serial communication protocols (RS232/RS485). It describes the system components, such as the turbomolecular pump, controller, and primary diaphragm forepump, and outlines technical specifications for operation.
Agilent AG81 specifications
| Maximum rotational speed | 80,000 rpm max |
|---|---|
| Storage temperature range | -20 °C to 70°C |
| Operating humidity | 0 to 95% (non-condensing) |
| Maximum operating pressure | 2 bar above atmospheric |
All Agilent AG81 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Does the Mini-TASK AG81 require oil maintenance?
No, the Varian Turbo Pumps do not need oil refills.
From: Agilent Mini-TASK AG81 Active Gauge Pumping System Product Leaflet
Is the system compatible with worldwide power configurations?
Yes, it features universal voltage from 90V to 240V AC at 50/60 Hz.
From: Agilent Mini-TASK AG81 Active Gauge Pumping System Product Leaflet
What types of substances can the Mini-TASK AG81 pump?
The system is suitable for pumping any type of gas or gaseous compound but is not designed for liquids or solid particles.
How long can a turbomolecular pump be stored?
The storage time for a turbomolecular pump is 10 months from the shipping date.
