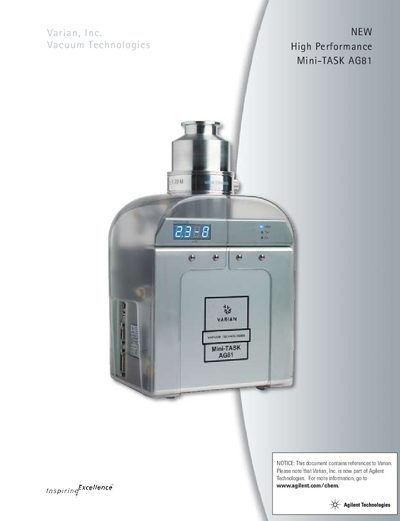

NEW High Performance Mini-TASK AG81 Varian, Inc. Vacuum Technologies has improved vacuum performance. Turbo-V 81-M is a high performance turbo-drag pump with an improved mechanical design that is aimed at: Higher foreline pressure tolerance, Higher pumping speed and throughput, Excellent compression ratio. This compact, portable vacuum system is easy to use: Just plug it in and pump.
The Agilent Mini-TASK AG81 is a portable, fully-integrated pumping system powered by the Varian Turbo-V 81 MacroTorr® turbomolecular pump backed by a 10 l/min diaphragm pump. It features new generation electronics that allow full control of the Mini-IMG high vacuum gauge and provide pressure data on three independent channels: an on-board display, serial communication, and analog output.
The system is designed for demanding applications requiring cost-effective pumping solutions for small volumes. Key benefits include its compact, light, dry, clean, and robust design; universal voltage compatibility (90V-240V); and the ability to operate in any position without maintenance requirements due to its oil-free nature.
| Base Pressure | 2x10^-7 mbar |
|---|---|
| Turbo Pump Rotational Speed | 80,000 rpm |
No, the Varian Turbo Pumps do not need oil refills.
Yes, it features universal voltage from 90V to 240V AC at 50/60 Hz.
