Key facts
- Brand
- Agilent
- Model
- 7820A GC
- Documents
- 5
- Languages
- EN
- Last added
- 2012-07-03
Start here

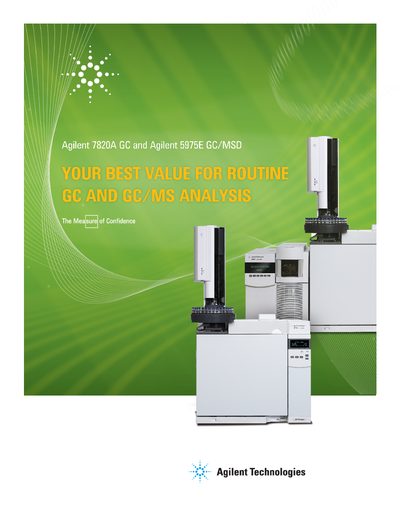

Agilent 7820A GC and 5975E GC/MSD Brochure
The document introduces the Agilent 7820A GC and 5975E GC/MSD as a bundled solution designed to provide maximum uptime and reproducible results for small- and medium-sized labs. Key features include electronic pneumatics control (EPC), digital electronics, and support for MSD ChemStation software.
Read onlineAgilent 7820A GC specifications
| Column | Agilent J&W DB-FFAP, 30 m x 320 um, 0.25 um |
|---|---|
| Carrier gas | He, Constant flow: 1.5 mL/min |
| Oven temperature program | 80 °C (3 min) 8 °C/min 150 °C (5 min) |
| Detector temperature | pTCD: 200 °C |
| Detection limit (S/N=6.8) | 0.05 wt% |
| Method precision (RSD) | 1.75% |
| Linearity (r2) | 0.9917 |
Source: Agilent 7820A GC Application Brief for Formic Acid Determination
All Agilent 7820A GC documents by type
How to use the product for one specific task, with worked examples.
Mounting, wiring and first power-up. Read it before the hardware goes in.
Questions answered in these manuals
What types of labs is the Agilent 7820A GC designed for?
It is ideal for small- and medium-sized labs that are primarily concerned with routine analyses using standard GC methods.
What components are included in the bundled Agilent 5975E GC/MSD system?
The system includes a split/splitless GC inlet, essential MS supplies such as a low-bleed column, and pre-loaded MSD ChemStation software.
What gases can be measured with the TCD channel?
The TCD channel is used to measure H₂, CO₂, O₂, N₂, CH₄, and CO.
Which column is used for measuring hydrocarbons?
A capillary column (Al₂O₃ PLOT: 50 m x 0.53 mm) is used to measure all hydrocarbons from C1 to C6.
What column is used for the analysis?
An Agilent J&W DB-FFAP capillary column (30 m x 320 um, 0.25 um) is used.
From: Agilent 7820A GC Application Brief for Formic Acid Determination
What detector is used in this method?
The method uses a micro thermal conductivity detector (pTCD).
From: Agilent 7820A GC Application Brief for Formic Acid Determination
