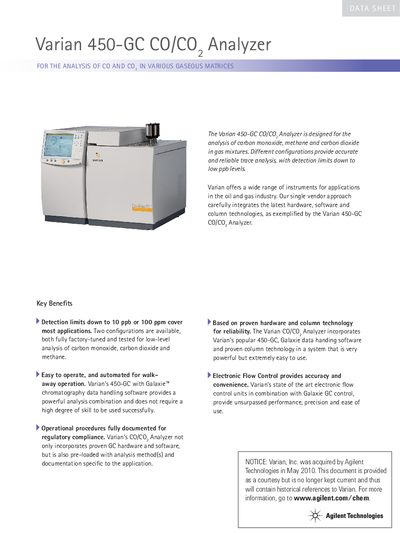

Agilent 450-GC CO/CO2 Analyzer Manual
The Varian 450-GC CO/CO Analyzer is designed for the accurate and reliable trace analysis of carbon monoxide, methane, and carbon dioxide in gas mixtures. It features detection limits down to low ppb levels and is available in two configurations: one optimized for hydrocarbon matrices like ethylene or propylene, and another with an enlarged sample loop for pure gases such as hydrogen, helium, and nitrogen.
The system incorporates proven hardware and column technology based on the Varian 450-GC platform. It utilizes a single channel, multi-dimensional packed column configuration with injection via gas sampling valve and detection using a methanizer and FID in series. The analyzer is fully automated for walk-away operation and includes operational procedures documented for regulatory compliance.
Agilent 450-GC specifications
| Applicability | Determination of trace levels of carbon monoxide, methane and carbon dioxide in mixtures of gases. |
|---|---|
| External requirements | Sample must be gas at room temperature with a maximum pressure of 3 bar. |
| Analysis time | Approximately 15 min. |
| Minimum detectability (hydrocarbon matrices) | Better than 10 ppb. |
| Minimum detectability (pure gases) | 100 ppm. |
| Dynamic range | Between 10 ppb and 0.05% in everyday use. |
| Repeatability | Better than 1% relative standard deviation at the 50 ppm concentration level. |
| Hardware configuration | Single channel, multi-dimensional, packed column configuration based on Varian 450-GC. |
All Agilent 450-GC documents by type
How to use the product for one specific task, with worked examples.
- Agilent Detailed Hydrocarbon Analysis of Petroleum Naphthas through n-Nonane using ASTM D 5134 Application Note 3 p
- Varian 450-GC Analysis of Sulfur Components in LPGs Application Note 4 p
- Agilent Detailed Hydrocarbon Analysis of Spark Ignition Engine Fuels by GC using ASTM D 6729 3 p
- Varian 450-GC Gas Chromatograph Application Note SI-01298 3 p
- Agilent Simulated Distillation of a Heavy Gasoil FCC Feed According to IP 480 2 p
Questions answered in these manuals
What gases can this analyzer determine?
The analyzer determines trace levels of carbon monoxide, methane, and carbon dioxide in mixtures of gases.
What is the analysis time?
The analysis time is approximately 15 minutes.
What are the application areas for these GC solutions?
Application areas include catalyst research and screening, fuel cell development, gas to liquid monitoring, biomass conversion, and synthetic natural gas.
From: Agilent CP-4900/450-GC Gas Chromatograph Custom Solutions Brochure
What options are available for the CP-4900 Micro GC?
Options include backflush to protect columns, a gassifier for high pressure samples, and a Genie Filter for moisture removal.
From: Agilent CP-4900/450-GC Gas Chromatograph Custom Solutions Brochure
What is the maximum allowed olefin content for this analysis?
The olefin content (v/v) must be lower than 2% to avoid serious co-elutions.
Which ASTM standard is used for this hydrocarbon analysis?
The method covers the determination of hydrocarbon components according to ASTM D 5134.
