The TSH8x series is a wide band, rail-to-rail operational amplifier with a standby function. It operates at 4.5V and 12V, has a 3dB bandwidth of 100MHz, a slew rate of 100V/µs, and an output current of up to 55mA.

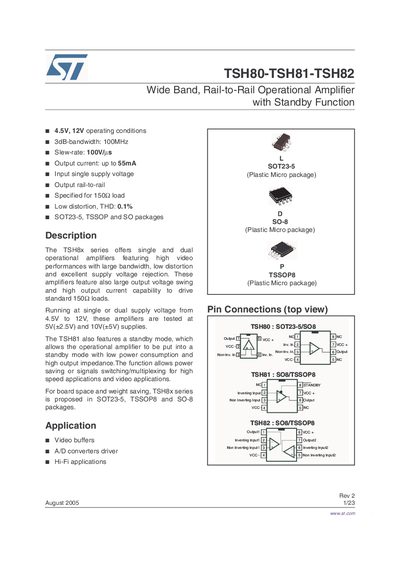

The TSH8x series from STMicroelectronics provides single and dual operational amplifiers with high video performance, large bandwidth, low distortion and rail‑to‑rail output. The devices operate from 4.5 V to 12 V supply and are offered in compact SOT23‑5, TSSOP‑8 and SO‑8 packages.
Key features include a standby mode on the TSH81 for power saving, up to 55 mA output current, 100 MHz 3 dB bandwidth, 100 V/µs slew rate and 0.1 % THD. Detailed electrical characteristics, absolute maximum ratings and mechanical package data are provided for designers.
| Supply Voltage (Voc) | 4.5 V to 12 V |
|---|---|
| 3 dB Bandwidth | 100 MHz |
| Slew Rate | 100 V/µs |
| Output Current | up to 55 mA |
| Total Harmonic Distortion (THD) | 0.1 % |
| Gain‑Bandwidth Product (GBP) | 65 MHz |
They operate from a single or dual supply voltage of 4.5 V to 12 V.
The amplifiers are offered in SOT23‑5, TSSOP‑8 and SO‑8 packages.
The TSH81 model features a standby mode for low‑power operation.
They are used in video buffers, A/D converter drivers and Hi‑Fi audio applications.
