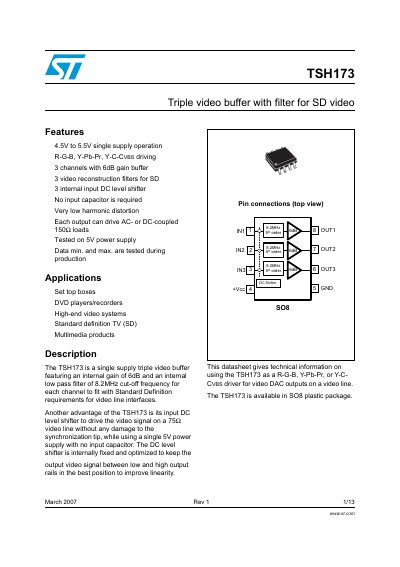

STMicroelectronics TSH173 Triple Video Buffer Datasheet
The TSH173 is a single-supply triple video buffer designed for standard definition (SD) video line interfaces. It features an internal gain of 6dB and a fifth-order low-pass filter with an 8.2MHz cut-off frequency per channel to reconstruct the video signal. A key advantage is its built-in DC level shifter, which allows driving a 75Ω video line from a single 4.5V to 5.5V supply without requiring input capacitors or damaging the synchronization tip.
Read onlineSTMicroelectronics TSH173 specifications
| Supply voltage range | 4.5V to 5.5V |
|---|---|
| Operating temperature range | -40°C to +85°C |
| Gain per channel | 6dB (1.95 V/V) |
| Filter cut-off frequency | 8.2MHz |
| Number of channels | 3 |
| Package type | SO8 plastic package |
Source: STMicroelectronics TSH173 Triple Video Buffer Datasheet
All STMicroelectronics TSH173 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
Does the TSH173 require input capacitors?
No, the device features an internal DC level shifter that allows driving a 75Ω video line without any input capacitor.
From: STMicroelectronics TSH173 Triple Video Buffer Datasheet
What supply voltage is needed for operation?
The TSH173 operates on a single power supply ranging from 4.5V to 5.5V.
From: STMicroelectronics TSH173 Triple Video Buffer Datasheet
What is the required input signal voltage range to prevent clamping?
The input signal must be between 0V and 1.4V so that it is not clamped.
From: ST AN2705 handbook
Which resistors should be removed to AC couple the output?
You must remove the R4, R11, and R18 zero ohm resistors.
From: ST AN2705 handbook
