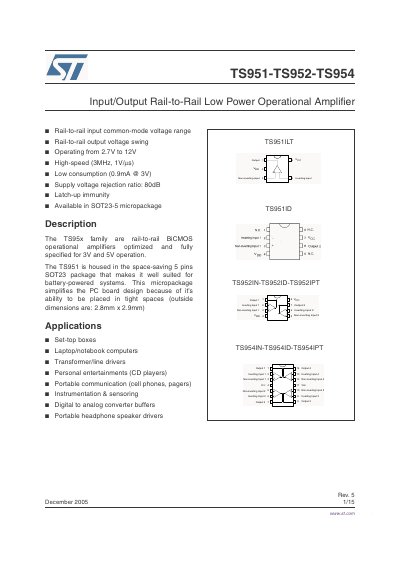

The TS95x family is a series of low power, input/output rail-to-rail low power operational amplifiers optimized and fully specified for 3V and 5V operation.
The TS951‑TS952‑TS954 family are rail‑to‑rail BiCMOS operational amplifiers optimized for 3 V and 5 V operation. They are offered in several compact packages (SOT23‑5, SO‑8, TSSOP‑8, etc.) suitable for battery‑powered and space‑constrained designs.
Key features include rail‑to‑rail input and output, low supply current, high slew rate, and robust latch‑up immunity. The datasheet provides absolute maximum ratings, electrical characteristics, mechanical dimensions, and ordering information for each device variant.
| Supply voltage range | 2.7 V to 12 V |
|---|---|
| Slew rate | 1 V/µs |
| Output short‑circuit current | 10 mA |
They operate from 2.7 V up to 12 V.
The output short‑circuit current is limited to 10 mA.
The typical slew rate is 1 V/µs.
