STTH5L06D/B/FP is a high voltage rectifier diode from ST company. It is suitable for boost diodes in discontinuous or critical mode power factor corrections. It can also be used as a freewheeling diode in power supplies and other power switching applications.
The STTH5L06D/B/FP is an ultrafast switching diode featuring low reverse recovery current and low thermal resistance, suitable for boost DPAK diode applications and free‑wheeling in power supplies. It is offered in TO‑220AC, TO‑220FPAC and DPAK packages.

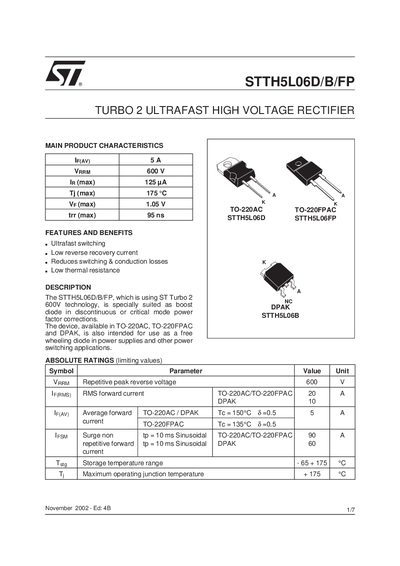

The document provides absolute and thermal ratings, static and dynamic electrical characteristics, as well as detailed mechanical dimensions and package footprints for each housing type.
| Average forward current (IF(av)) | 5 A |
|---|---|
| Repetitive peak reverse voltage (VrRM) | 600 V |
| Maximum reverse recovery voltage (Vr) | 1.05 V |
| Maximum reverse recovery time (trr) | 95 ns |
| Forward voltage drop at IF=5 A, Tj=25 °C | 1.3 V |
| Reverse leakage current at Vr=600 V, Tj=25 °C | 5 µA |
| Recommended torque (TO‑220AC) | 0.55 Nm |
The device can withstand a repetitive peak reverse voltage of 600 V.
The recommended torque value for the TO‑220AC package is 0.55 Nm.
The forward voltage drop is 1.3 V under those conditions.
The maximum reverse recovery time is 95 ns.
