This document describes a high voltage power Schottky rectifier with features including high junction temperature capability, good trade-off between leakage current and forward voltage drop, low leakage current, and specified avalanche capability.

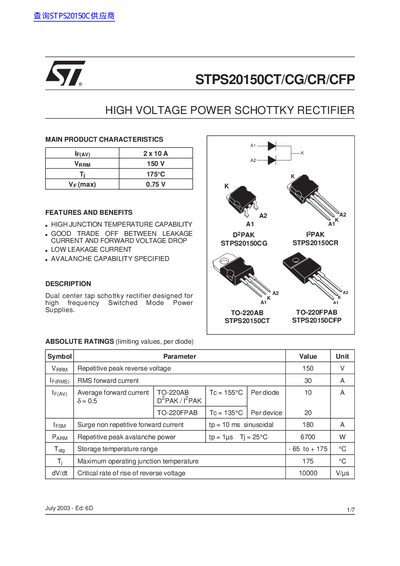

This handbook describes the STPS20150 family of dual‑center‑tap Schottky rectifiers designed for high‑frequency switched‑mode power supplies. It lists the main product characteristics, features, and benefits such as high junction temperature capability, low leakage current, and avalanche capability.
The document includes absolute ratings, thermal resistances, static electrical characteristics, detailed mechanical package dimensions for TO‑220AB, DPAK, D2PAK and TO‑220FPAB variants, as well as ordering information and regulatory notes.
| Repetitive peak reverse voltage | 150 V |
|---|---|
| RMS forward current | 30 A |
| Maximum junction temperature | 175 °C |
The maximum repetitive peak reverse voltage is 150 V.
The RMS forward current rating is 30 A.
The device can operate up to a junction temperature of 175 °C.
