STPS10150CT/CG is a high voltage and high current Schottky rectifier produced by STMicroelectronics. It has excellent performance and is widely used in high frequency switched mode power supplies.

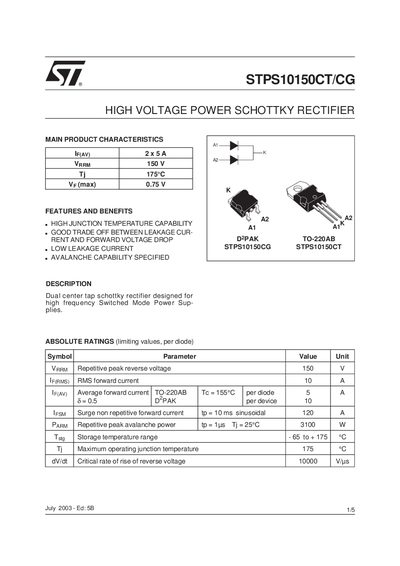

The STPS10150CT/CG is a dual center‑tap Schottky rectifier designed for high‑frequency switched‑mode power supplies. The document lists its main characteristics, including a 150 V repetitive peak reverse voltage, 10 A RMS forward current and avalanche capability.
Detailed sections cover thermal resistances, static electrical characteristics, package mechanical data and ordering information. Mechanical dimensions for the TO‑220AB and DPAK packages are provided together with weight and marking details.
| Repetitive peak reverse voltage (VRRM) | 150 V |
|---|---|
| RMS forward current (IF(av)) | 10 A |
| Surge non‑repetitive forward current (10 ms, 120 V sinusoidal) | 120 A |
| Repetitive peak avalanche power (tp=1 µs, Tj=25 °C) | 3100 W |
| Storage temperature range | -65 °C to +175 °C |
| Maximum operating junction temperature (Tj) | 175 °C |
| Junction‑to‑case thermal resistance (TO‑220AB) | 0.7 °C/W |
| Junction‑to‑case total thermal resistance (TO‑220AB) | 2.4 °C/W |
The device is rated for a repetitive peak reverse voltage of 150 V.
It can carry up to 10 A RMS forward current, with an average forward current of 5 A per diode.
The junction‑to‑case thermal resistance is 0.7 °C/W, and the total junction‑to‑case resistance is 2.4 °C/W.
The storage temperature range is –65 °C to +175 °C.
