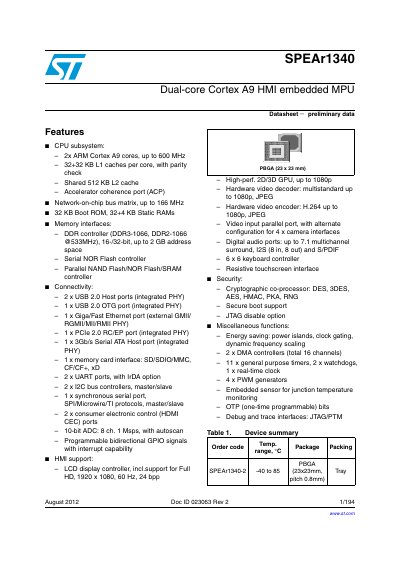

STMicroelectronics SPEAr1340 Datasheet
The SPEAr1340 is a system-on-chip belonging to the SPEA family of embedded microprocessors, designed for consumer and professional applications requiring advanced human-machine interfaces (HMI) combined with high performance. It supports both real-time operating systems (RTOS) and high-level operating systems such as Android, Linux, and Windows Embedded Compact 7.
The device architecture is based on several internal components communicating through a multilayer interconnection matrix (BUSMATRIX). Key features include dual ARM Cortex-A9 cores running up to 600 MHz, a shared 512 KB L2 cache, and high-performance master agents directly interconnected with the DDR memory controller. It integrates various connectivity options including USB 2.0, Gigabit Ethernet, PCIe 2.0, SATA, and multiple memory card interfaces.
STMicroelectronics SPEAr1340 specifications
| CPU Cores | 2x ARM Cortex-A9 cores |
|---|---|
| Maximum Frequency | Up to 600 MHz |
| L1 Cache per Core | 32+32 KB with parity check |
| Shared L2 Cache | 512 KB |
| Boot ROM Size | 32 KB |
| Static RAMs | 32+4 KB |
| DDR Controller Speed | DDR3-1066, DDR2-1066 @533MHz |
| Ethernet Port | Giga/Fast Ethernet |
| PCIe Port | PCle 2.0 RC/EP |
| SATA Port | 3Gb/s Serial ATA Host |
| Memory Card Interface | SD/SDIO/MMC, CF/CF+, xD |
| ADC Channels | 8 channels, 1 Msps |
| LCD Display Support | Full HD, 1920 x 1080, 60 Hz |
| GPU Capability | High-perf. 2D/3D GPU |
| Video Decoder | Multistandard up to 1080p, JPEG |
| Video Encoder | H.264 up to 1080p, JPEG |
| Audio Ports | 7.1 multichannel surround, I2S (8 in, 8 out), S/PDIF |
| Security Features | DES, 3DES, AES, HMAC, PKA, RNG |
All STMicroelectronics SPEAr1340 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What operating systems is the SPEAr1340 compliant with?
The device is hardware-compliant to support real-time (RTOS) and high-level (HLOS) operating systems, such as Android, Linux and Windows Embedded Compact 7.
What is the maximum clock speed of the SPEAr1340 CPU cores?
The device features two ARM Cortex-A9 cores with a maximum frequency of up to 600 MHz.
What is the minimum number of PCB layers recommended for this design?
The document recommends a minimum of 6 layers for the PCB stack.
From: STMicroelectronics AN3317 SPEAr1340 PCB Guidelines Application Note
What is the maximum allowed trace length for connections inside the ball field?
Trace length inside the ball field must be less than 1 mm.
From: STMicroelectronics AN3317 SPEAr1340 PCB Guidelines Application Note
