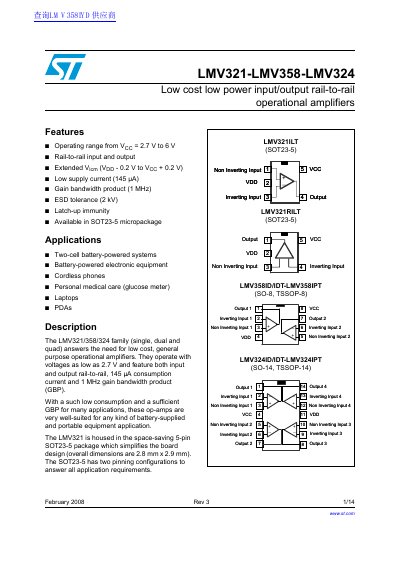

LMV321-LMV358-LMV324 is a low cost, low power, input/output rail-to-rail operational amplifiers. It features a operating range from VCC = 2.7 V to 6 V, rail-to-rail input and output, extended Vicm (VDD - 0.2 V to VCC + 0.2 V), low supply current (145 µA), gain bandwidth product (1 MHz), ESD tolerance (2 kV), latch-up immunity and SOT23-5 micropackage. Its applications include: two-cell battery-powered systems, battery-powered electronic equipment, cordless phones, personal medical care (glucose meter), laptops, PDAs.
This document describes the LMV321/358/324 family of single, dual, and quad operational amplifiers designed for low-cost, general-purpose applications. These devices operate with supply voltages as low as 2.7 V and feature both input and output rail-to-rail capabilities.
| Supply voltage range | 2.7 V to 6 V |
|---|---|
| Gain bandwidth product | 1 MHz |
| Supply current per amplifier | 145 uA |
| Operating temperature range | -40 to + 125 °C |
The devices operate with a supply voltage ranging from 2.7 V to 6 V.
Each amplifier consumes a typical supply current of 145 uA when there is no load.
The SOT23-5 package has overall dimensions of 2.8 mm x 2.9 mm.
