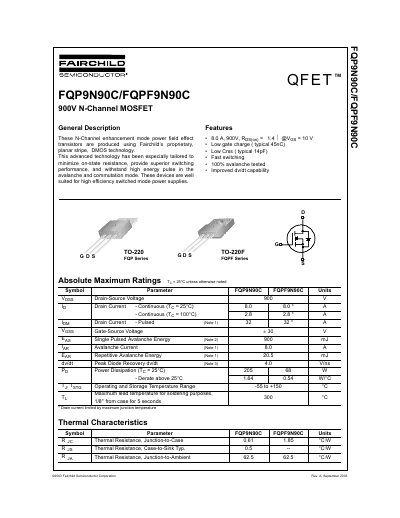

Fairchild Semiconductor FQP9N90C/FQPF9N90C 900V N-Channel MOSFET Datasheet
This document provides design specifications for the FQP9N90C and FQPF9N90C, which are N-Channel enhancement mode power field effect transistors produced using Fairchild's proprietary planar stripe DMOS technology. These devices feature low on-state resistance and superior switching performance, making them well-suited for high efficiency switched mode power supplies.
Read onlineFairchild FQPF9N90C specifications
| Drain-Source Voltage (Vdss) | 900 V |
|---|---|
| Continuous Drain Current (Tg = 25°C) | 8.0 A |
| Continuous Drain Current (Tg = 100°C) | 2.8 A |
| Pulsed Drain Current | 32 A |
| Gate-Source Voltage | +/- 30 V |
| Single Pulsed Avalanche Energy | 900 mJ |
| Power Dissipation (Tg = 25°C) | 205 W |
| Operating and Storage Temperature Range | -55 to +150 °C |
Source: Fairchild Semiconductor FQP9N90C/FQPF9N90C 900V N-Channel MOSFET Datasheet
All Fairchild FQPF9N90C documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the maximum continuous drain currents at different temperatures?
The device supports a continuous current of 8.0 A at 25°C and 2.8 A at 100°C.
From: Fairchild Semiconductor FQP9N90C/FQPF9N90C 900V N-Channel MOSFET Datasheet
What is the maximum single pulsed avalanche energy rating?
The FQP9N90C can withstand a single pulsed avalanche energy of up to 900 mJ.
From: Fairchild Semiconductor FQP9N90C/FQPF9N90C 900V N-Channel MOSFET Datasheet
What is the maximum drain‑source voltage for the FQP9N90C/FQPF9N90C?
The device is rated for a maximum drain‑source voltage of 900 V.
From: Fairchild FQP9N90C/FQPF9N90C 900V N-Channel MOSFET Datasheet
Which package styles are available for this MOSFET?
The MOSFET is offered in TO‑220 and TO‑220F packages.
From: Fairchild FQP9N90C/FQPF9N90C 900V N-Channel MOSFET Datasheet
