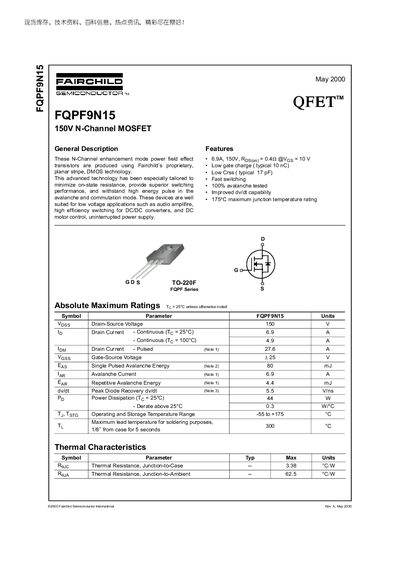

Fairchild FQPF9N15 MOSFET Datasheet
The FQPF9N15 is a 150 V N‑Channel enhancement mode power MOSFET fabricated with Fairchild's planar stripe DMOS technology. It is designed for low‑voltage applications such as audio amplifiers, DC‑DC converters, and motor control, offering low on‑state resistance, fast switching, and high avalanche capability.
Key specifications include a continuous drain current of 6.9 A at 25 °C, a pulsed drain current of 27.6 A, an on‑resistance of 0.42 Ω at VGS = 10 V, and a total gate charge of 13 nC. The device is supplied in a TO‑220F package and operates over a temperature range of –55 °C to +175 °C.
Fairchild FQPF9N15 specifications
| Drain‑Source Voltage (V_DSS) | 150 V |
|---|---|
| Continuous Drain Current (I_D) at 25 °C | 6.9 A |
| Pulsed Drain Current (I_D) (Note 1) | 27.6 A |
| On‑Resistance (R_DS(on)) | 0.42 Ω @ V_GS=10 V |
| Total Gate Charge (Q_g) | 13 nC |
| Input Capacitance (C_iss) | 320 pF |
| Output Capacitance (C_oss) | 80 pF |
| Power Dissipation (P_D) at 25 °C | 44 W |
| Operating Temperature Range | -55 °C to +175 °C |
| Thermal Resistance Junction‑to‑Case | 3.38 °C·W |
All Fairchild FQPF9N15 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of 150 V.
What continuous drain current can the FQPF9N15 handle at 25 °C?
It can handle a continuous drain current of 6.9 A at 25 °C.
What is the maximum drain‑source voltage rating?
The device is rated for a maximum drain‑source voltage of 150 V.
What continuous drain current can the FQPF9N15 handle at 25 °C?
It can handle a continuous drain current of 6.9 A at 25 °C.
