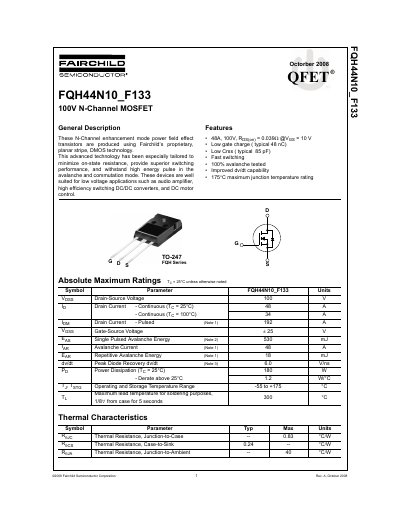

Fairchild FQH44N10_F133 100V N-Channel MOSFET Datasheet
The document describes the Fairchild FQH44N10_F133, an N-channel enhancement mode power field effect transistor produced using Fairchild's proprietary planar stripe, DMOS technology. These devices are designed to minimize on-state resistance and provide superior switching performance, making them suitable for low voltage applications such as audio amplifiers, high efficiency switching DC/DC converters, and DC motor control.
Read onlineFairchild F133 specifications
| Drain-Source Voltage | 100 V |
|---|---|
| Continuous Drain Current (Tj = 25°C) | 48 A |
| Maximum Junction Temperature | 175°C |
| Package Type | TO-247AB |
| On-State Resistance (Typical) | 0.039 Ω @ Vgs = 10V |
| Gate Charge (Typical) | 48 nC |
