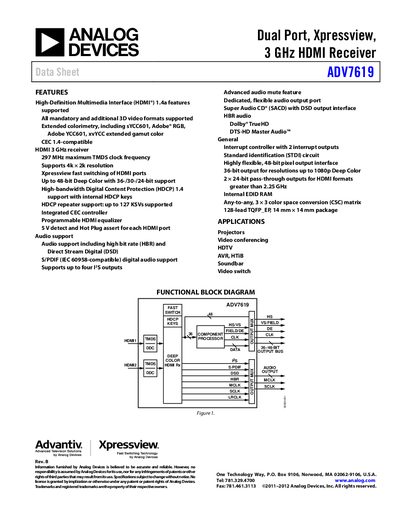

This data sheet describes the features and characteristics of the ADV7619 Rev. B
The ADV7619 HDMI receiver from Analog Devices provides two HDMI inputs with Xpressview fast switching, supporting HDMI 1.4a, 3D video, 4K × 2K resolution, Deep Color up to 48‑bit, and a full suite of audio formats including SACD, DSD, Dolby TrueHD and DTS‑HD. It integrates a CEC controller, programmable equalizer, and flexible audio output ports.
The device is supplied in a 128‑lead TQFP_EP package (14 mm × 14 mm), operates from 0 °C to 70 °C, and includes detailed electrical characteristics, timing specifications, and absolute maximum ratings for designers.
| Maximum TMDS clock frequency | 297 MHz |
|---|---|
| Supported resolution | up to 4k × 2k (3840 × 2160 at 30 Hz) |
| Package | 128‑lead TQFP_EP, 14 mm × 14 mm |
| Operating temperature range | 0 °C to 70 °C |
It supports HDMI 1.4a features.
The device provides two HDMI inputs.
It can handle pixel clocks up to 300 MHz.
It is offered in a 128‑lead TQFP_EP package measuring 14 mm × 14 mm.
