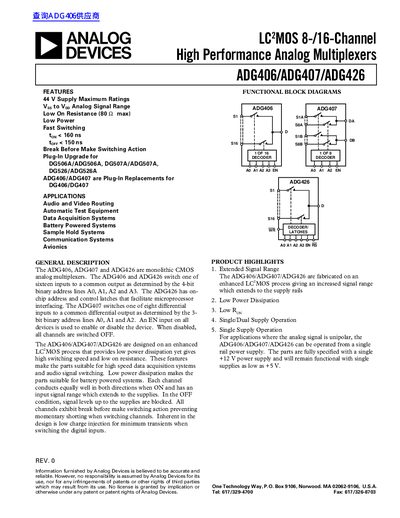

ANALOG DEVICES LC 2 MOS 8-/16-Channel High Performance Analog Multiplexers ADG406/ADG407/ADG426 handbook
The document describes the ADG406, ADG407, and ADG426 monolithic CMOS analog multiplexers. The ADG406 and ADG426 switch one of sixteen inputs to a common output using 4-bit binary address lines, while the ADG407 switches one of eight differential inputs using 3-bit address lines. All devices feature an enable input to turn the device on or off.
These multiplexers are fabricated on an enhanced LC MOS process, offering low power dissipation, high switching speed (transition time < 160 ns), and low on-resistance (80 Ω max). They support both dual supply operation (up to ±15 V) and single supply operation (+5 V to +12 V), making them suitable for audio/video routing, data acquisition systems, and battery-powered applications.
Analog Devices ADG426 specifications
| On Resistance (Max) | 80 Ω |
|---|---|
| Transition Time (Typical) | < 160 ns |
| Supply Voltage Range | Vss to Vpp |
| Analog Signal Range | Vss to Vpp |
| Input High Voltage (Min) | 2.4 V |
| Input Low Voltage (Max) | 0.8 V |
All Analog Devices ADG426 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on-resistance of these multiplexers?
The maximum on-resistance is 80 Ω.
Can these devices operate with a single power supply?
Yes, they can be operated from a single rail power supply as low as +5 V up to +12 V.
What supply voltage range can the devices operate over?
They operate with VDD = +16.5 V and VSS = –16.5 V.
From: Analog Devices ADG406/ADG407/ADG426 Analog Multiplexer Datasheet
How many input channels does the ADG406 provide?
The ADG406 can select one of sixteen inputs via a 4‑bit address.
From: Analog Devices ADG406/ADG407/ADG426 Analog Multiplexer Datasheet
What is the maximum supply voltage for the ADG406/ADG407/ADG426?
The devices can be powered with Vop = +16.5 V and Vss = –16.5 V.
What temperature ranges are supported?
B‑Version devices operate from –40 °C to +85 °C, while T‑Version devices operate from –55 °C to +125 °C.
