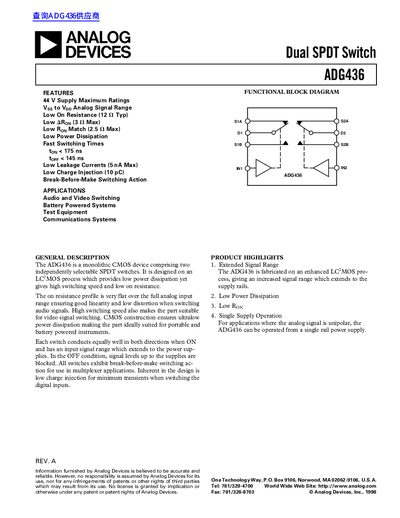

Analog Devices ADG436 Dual SPDT Switch Datasheet
Datasheet 8 pages · 98 KB · EN
The document is a technical datasheet for the ADG436, a monolithic CMOS device comprising two independently selectable single-pole double-throw (SPDT) switches. Designed on an LC7MOS process, it features low power dissipation, high switching speed, and low on-resistance suitable for audio, video, test equipment, and communications applications.
Read onlineAnalog Devices ADG436 specifications
| Switching Time On (ton) | < 175 ns |
|---|---|
| Supply Voltage Maximum | 44 V |
| Leakage Current Max | 5 nA |
| Charge Injection Typ | 10 pC |
All Analog Devices ADG436 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage?
The device supports a maximum supply rating of 44 V.
Does the ADG436 support single supply operation?
Yes, it can be operated from a single rail power supply for unipolar analog signals.
What is the maximum allowable supply voltage difference for the ADG436?
The device can tolerate up to a 44 V difference between Vop and Vss.
What is the typical on‑resistance of the ADG436 switch?
The typical on‑resistance is 12 Ω.
