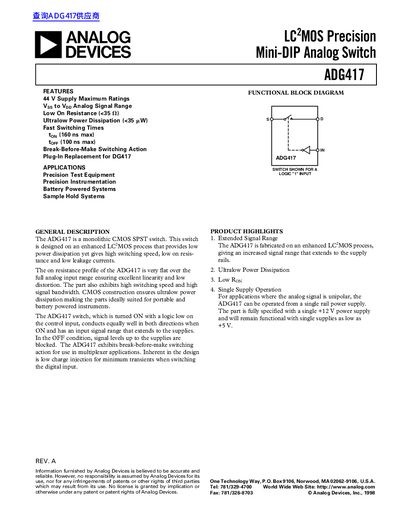

Analog Devices ADG417 Mini-DIP Analog Switch Datasheet
The ADG417 is a monolithic CMOS single-pole single-throw (SPST) analog switch designed on an enhanced LC?MOS process. It offers low on-resistance (<35 Ω), ultralow power dissipation (<35 µW), and fast switching times with break-before-make action. The device supports both dual and single supply operation, making it suitable for precision test equipment, instrumentation, battery-powered systems, and sample hold applications.
Read onlineAnalog Devices ADG417 specifications
| On Resistance (Ron) | < 35 Ω typical |
|---|---|
| Power Dissipation | < 35 µW |
| Switching Time (ton) | 160 ns max |
| Supply Voltage Range | -44 V to +44 V |
| Analog Signal Range | Vss to Vpp |
| Operating Temperature (B Version) | -40°C to +85°C |
| Operating Temperature (T Version) | -55°C to +125°C |
Source: Analog Devices ADG417 Mini-DIP Analog Switch Datasheet
All Analog Devices ADG417 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for the ADG417?
The maximum supply rating is 44 V.
From: Analog Devices ADG417 Mini-DIP Analog Switch Datasheet
What type of switching action does the ADG417 exhibit?
It exhibits break-before-make switching action for use in multiplexer applications.
From: Analog Devices ADG417 Mini-DIP Analog Switch Datasheet
What is the analog signal range of the ADG417?
The device supports an analog signal range from Vss to Vpp.
How much power can the ADG417 dissipate?
The part can dissipate up to 400 mW.
