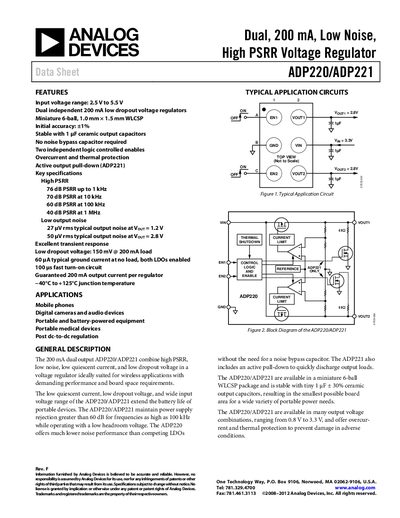

ANALOG DEVICES ADP220handbookRev F
The ADP220 and ADP221 are dual, 200 mA low‑dropout voltage regulators offering high power‑supply‑rejection (PSRR), low output noise and low quiescent current. They are supplied in a miniature 6‑ball WLCSP package and are suited for portable, battery‑powered equipment such as mobile phones, digital cameras and medical devices.
The document provides specifications, typical application circuits, pin descriptions, thermal data, recommended capacitor selections and ordering information. It also includes performance graphs for PSRR, dropout voltage, output noise and thermal behavior.
Analog Devices ADP220 specifications
| Input voltage range | 2.5 V to 5.5 V |
|---|---|
| Maximum output current per regulator | 200 mA |
| Dropout voltage at 200 mA | 150 mV |
| PSRR at 1 kHz | 76 dB |
All Analog Devices ADP220 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the input voltage range of the ADP220/ADP221?
The regulators operate with an input voltage from 2.5 V to 5.5 V.
How much current can each regulator output?
Each regulator can supply up to 200 mA of output current.
What is the input voltage range of the ADP220/ADP221?
The regulators operate with an input voltage from 2.5 V up to 5.5 V.
From: Analog Devices ADP220/ADP221 Dual LDO Voltage Regulator Datasheet
What is the dropout voltage at a 200 mA load?
The dropout voltage is 150 mV when delivering 200 mA.
From: Analog Devices ADP220/ADP221 Dual LDO Voltage Regulator Datasheet
