The ADG406/ADG407/ADG426 are three high-performance analog switch chips that support 4-bit address coding and can achieve 16-way input and 1-way output multiplexing.
The ADG406, ADG407 and ADG426 are monolithic CMOS analog multiplexers. The ADG406 and ADG426 switch one of sixteen inputs to a common output, while the ADG407 switches one of eight differential inputs. All devices feature an EN enable pin, low on‑resistance, fast switching and low power dissipation, making them suitable for high‑speed data acquisition, audio routing and battery‑powered systems.

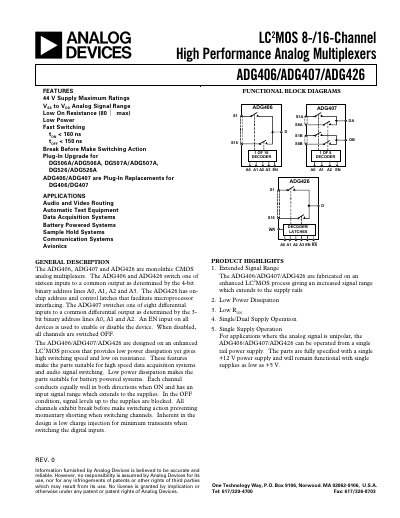

The datasheet provides detailed electrical characteristics, absolute maximum ratings, timing diagrams, pin configurations and package dimensions for both dual‑supply and single‑supply operation, along with recommended operating temperature ranges and ordering information.
| Supply Voltage Range | +16.5 V / –16.5 V |
|---|---|
| Source OFF Leakage Current | ±0.5 nA |
They operate with VDD = +16.5 V and VSS = –16.5 V.
The ADG406 can select one of sixteen inputs via a 4‑bit address.
