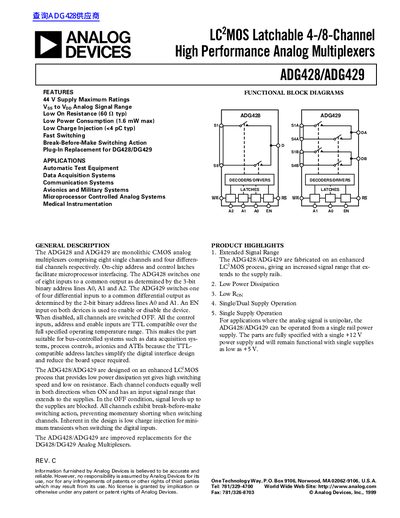

Analog Devices ADG428/ADG429 Datasheet
The Analog Devices ADG428 and ADG429 are monolithic CMOS analog multiplexers comprising eight single channels and four differential channels, respectively. These devices feature an enhanced LC2MOS process that provides low power dissipation, high switching speed, and low on-resistance of 60 Ω typical.
Designed for microprocessor-controlled systems, the ADG428/ADG429 include on-chip address and control latches compatible with TTL logic. They are suitable for applications such as automatic test equipment (ATE), data acquisition systems, communication systems, and medical instrumentation.
Analog Devices ADG428 specifications
| On Resistance (Ron) | 60 Ω typical |
|---|---|
| Supply Voltage Maximum | 44 V |
| Analog Signal Range | Vss to Vpp |
| Power Consumption Max | 1.6 mW |
| Charge Injection Typ | <4 pC |
| Operating Temperature Range (B Version) | -40°C to +85°C |
| Operating Temperature Range (T Version) | -55°C to +125°C |
All Analog Devices ADG428 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical on-resistance of the ADG428/ADG429?
The typical on-resistance is 60 Ω.
Are these devices compatible with TTL logic?
Yes, all control inputs are TTL compatible over the full specified operating temperature range.
What is the analog signal range for the ADG428/ADG429 with dual supplies?
The devices support an analog signal range from VSS to VDD.
What is the typical on‑resistance of the switches?
The typical on‑resistance is 60 Ω.
What is the maximum supply voltage for the ADG428/ADG429?
The devices are rated for a dual‑supply range of ±15 V.
What is the typical on‑resistance of the ADG428/ADG429?
The typical on‑resistance is about 60 mΩ.
