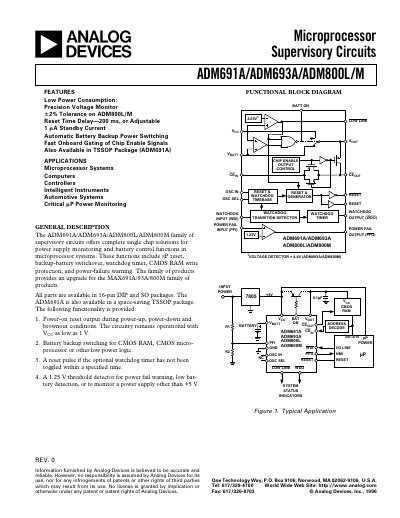

Analog Devices ADM691A/ADM693A/ADM800L/M Datasheet
The ADM691A, ADM693A, ADM800L, and ADM800M are microprocessor supervisory circuits that offer power‑on reset, battery backup switching, watchdog timer, and power‑fail detection. They are supplied in 16‑pin DIP, SO, and for ADM691A also a space‑saving TSSOP package.
The document lists electrical specifications such as operating voltage range, supply current, reset thresholds, and watchdog timing, and includes pin‑out tables, typical performance curves, and ordering information.
Analog Devices ADM800 specifications
| Operating Voltage Range | 0 – 5.5 V |
|---|---|
| Supply Current (Excludes I_OUT) | 70 – 100 µA |
| Reset Voltage Threshold (ADM691A/ADM800L) | 4.5 – 4.75 V |
| Watchdog Timeout Period (Internal Oscillator) | 1.0 – 2.25 s |
| Available Packages | 16‑pin DIP, SO, TSSOP (ADM691A) |
All Analog Devices ADM800 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the reset voltage threshold for the ADM691A?
The reset voltage threshold for the ADM691A ranges from 4.5 V to 4.75 V.
What is the typical supply current of these devices?
The supply current (excluding I_OUT) is specified as 70 µA to 100 µA.
What is the reset voltage threshold for the ADM800L?
The ADM800L reset threshold is specified between 4.5 V (minimum) and 4.75 V (maximum).
From: Analog Devices ADM800 Series Supervisory Circuit Datasheet
How can the watchdog timeout period be adjusted?
The watchdog timeout is set by the OSC SEL and OSC IN pins; using an external capacitor or clock on OSC IN changes the period according to the formulas in Table II.
From: Analog Devices ADM800 Series Supervisory Circuit Datasheet
