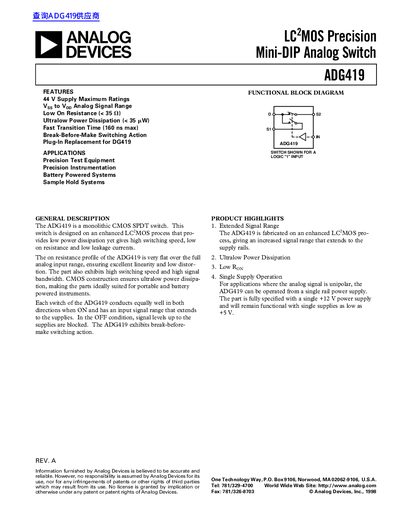

Analog Devices ADG419 LC MOS Precision Mini-DIP Analog Switch Datasheet
The ADG419 is a monolithic CMOS SPDT switch designed on an enhanced LC MOS process. It provides low power dissipation, high switching speed, low on-resistance, and low leakage currents, making it suitable for precision test equipment and battery-powered systems. The device exhibits break-before-make switching action and conducts equally well in both directions when ON.
Read onlineAnalog Devices ADG419 specifications
| On Resistance (Ron) | < 35 Ω |
|---|---|
| Power Dissipation | < 35 pW |
| Transition Time | 160 ns max |
| Supply Voltage Range | ±44 V |
| Analog Signal Range | Vss to Vpp |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Operating Temperature (Extended) | -55°C to +125°C |
Source: Analog Devices ADG419 LC MOS Precision Mini-DIP Analog Switch Datasheet
All Analog Devices ADG419 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the switching action of the ADG419?
The ADG419 exhibits break-before-make switching action.
From: Analog Devices ADG419 LC MOS Precision Mini-DIP Analog Switch Datasheet
What are the applications for the ADG419?
It is designed for precision test equipment, precision instrumentation, battery powered systems, and sample hold systems.
