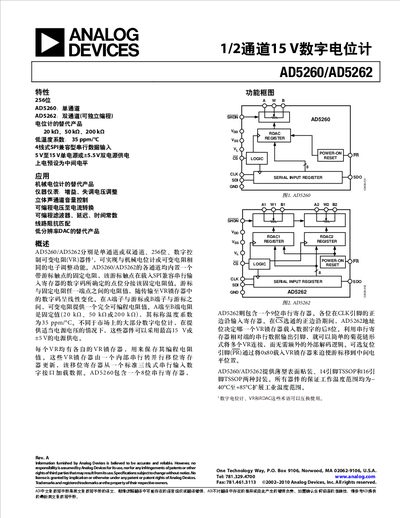

Analog Devices AD5260/AD5262 Digital Potentiometer Datasheet
The AD5260 and AD5262 are 1 or 2 channel, 256-bit, digitally controlled variable resistors (VR) that provide electronic adjustment similar to mechanical potentiometers. These devices feature a fixed resistor with a wiper tap controlled by a digital code loaded into a serial input register. The resistance between the wiper and either terminal (A or B) is fully programmable, while the total resistance (A to B) remains fixed at 20 kΩ, 50 kΩ, or 200 kΩ with a low temperature coefficient of 35 ppm/°C.
Read onlineAnalog Devices AD5260 specifications
| Channels | 1 (AD5260) or 2 (AD5262) |
|---|---|
| Resolution | 256 positions |
| Resistance Options | 20 kΩ, 50 kΩ, 200 kΩ |
| Supply Voltage | 5 V‑15 V single‑supply; ±5.5 V dual‑supply |
| Temperature Coefficient | 35 ppm/°C |
| Register Width | 8‑bit (AD5260) / 9‑bit (AD5262) |
| Package | 14‑lead TSSOP (AD5260) / 16‑lead TSSOP (AD5262) |
Source: Analog Devices AD5260/AD5262 Digital Potentiometer Datasheet
All Analog Devices AD5260 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage for this device?
The device can operate with a single power supply up to 16.5 V or a dual supply of ±5.5 V.
From: Analog Devices AD5260/AD5262 Digital Potentiometer Datasheet
What are the available resistance values for these potentiometers?
The AD5260 and AD5262 models offer fixed resistances of 20 kΩ, 50 kΩ, or 200 kΩ.
From: Analog Devices AD5260/AD5262 Digital Potentiometer Datasheet
What is the maximum supply voltage for these digital potentiometers?
The devices can operate with a single power supply up to 16.5 V or a dual supply of ±5.5 V.
From: Analog Devices AD5260/AD5262 256-Bit Digital Potentiometer Datasheet
What is the maximum operating temperature range for these devices?
The guaranteed operating temperature range is from -40°C to +85°C.
From: Analog Devices AD5260/AD5262 256-Bit Digital Potentiometer Datasheet
What is the maximum supply voltage for the AD5260/AD5262?
They operate up to +15 V with a single supply or ±5 V with a dual supply.
From: Analog Devices AD5260/AD5262 Digital Potentiometer Datasheet
How many bits of resolution does each device have?
The AD5260 uses an 8‑bit register, while the AD5262 uses a 9‑bit register.
From: Analog Devices AD5260/AD5262 Digital Potentiometer Datasheet
