ADG406/ADG407/ADG426 are high-performance 8/16-channel monolithic CMOS analog multiplexers with low on resistance, low power consumption, fast switching and break before make switching action. They are widely used in audio and video routing, automatic test equipment, data acquisition systems, battery powered systems, sample hold systems, communication systems, and avionics.
The ADG406, ADG407 and ADG426 are monolithic CMOS analog multiplexers designed for high‑speed data acquisition, audio/video routing, and battery‑powered systems. The devices offer low on‑resistance, low power dissipation, fast switching, and break‑before‑make action, making them suitable for a wide range of applications including test equipment and avionics.

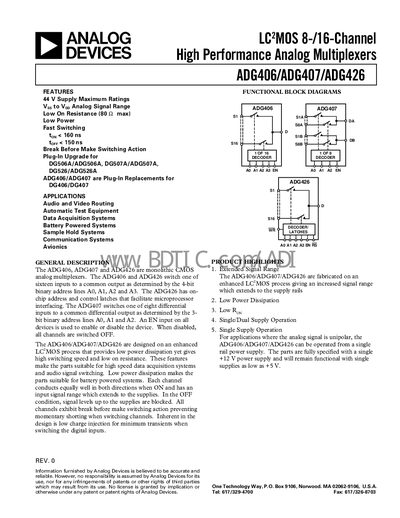

The datasheet includes detailed electrical specifications, absolute maximum ratings, pin configurations for DIP, PLCC and SSOP packages, timing diagrams, and typical performance graphs. Ordering information and package options are also provided.
| On‑Resistance (Ron) | 80 Ω max |
|---|---|
| Supply Voltage Range (Dual) | Vop = +16.5 V, Vss = -16.5 V |
| Switching Time (ton) | < 160 ns |
The devices can be powered with Vop = +16.5 V and Vss = –16.5 V.
B‑Version devices operate from –40 °C to +85 °C, while T‑Version devices operate from –55 °C to +125 °C.
The parts are offered in 28‑pin N‑28 (plastic DIP), 28‑pin P‑28A (PLCC) and 28‑pin RS‑28 (SSOP) packages.
