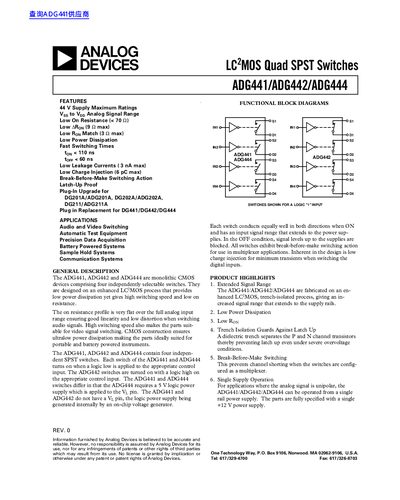

Analog Devices ADG441/ADG442/ADG444 LC2MOS Quad SPST Switches Datasheet
The ADG441, ADG442, and ADG444 are monolithic CMOS devices comprising four independently selectable LC2MOS Quad SPST switches. They are designed to provide low power dissipation with high switching speed and low on-resistance, making them suitable for audio and video signal switching applications.
Read onlineAnalog Devices ADG441 specifications
| Switching Time On (Typical) | 110 ns |
|---|---|
| Leakage Current (Max) | 3 nA |
| Charge Injection (Typical) | 1 pC |
| Supply Voltage Range | +44 V |
Source: Analog Devices ADG441/ADG442/ADG444 LC2MOS Quad SPST Switches Datasheet
All Analog Devices ADG441 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum on-resistance for these switches?
The maximum on-resistance (RON) is 85 Ω under specified test conditions.
From: Analog Devices ADG441/ADG442/ADG444 LC2MOS Quad SPST Switches Datasheet
Are these devices suitable for battery-powered systems?
Yes, CMOS construction ensures ultralow power dissipation making them ideally suited for portable and battery powered instruments.
From: Analog Devices ADG441/ADG442/ADG444 LC2MOS Quad SPST Switches Datasheet
What is the maximum supply voltage rating for the ADG441/ADG442/ADG444?
The devices are rated for a maximum supply voltage of 44 V between Vop and Vss.
What is the typical on‑resistance of these switches?
Typical on‑resistance (Ron) is 70 Ω.
