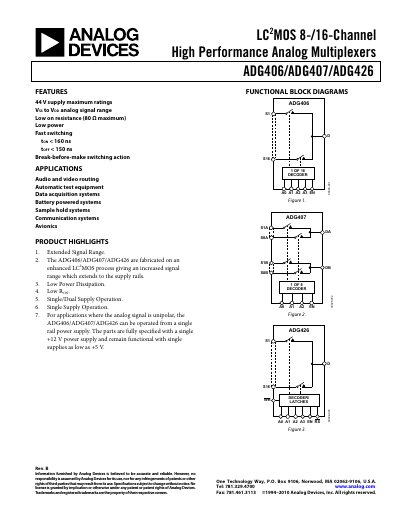

This document describes the features and characteristics of the ADG406/ADG407/ADG426 8/16-channel high performance analog multiplexers, including power supply range, signal range, switching speed, etc.
The ADG406, ADG407, and ADG426 are LC2MOS analog multiplexers offering low on‑resistance, low power dissipation, and fast switching. They support dual‑supply (+15 V/‑15 V) or single‑supply (+12 V) operation and are suitable for audio/video routing, data acquisition, battery‑powered systems, and avionics.
The document provides detailed functional block diagrams, pin configurations, electrical specifications, timing diagrams, absolute maximum ratings, and mechanical dimensions, as well as an ordering guide for the various package options.
