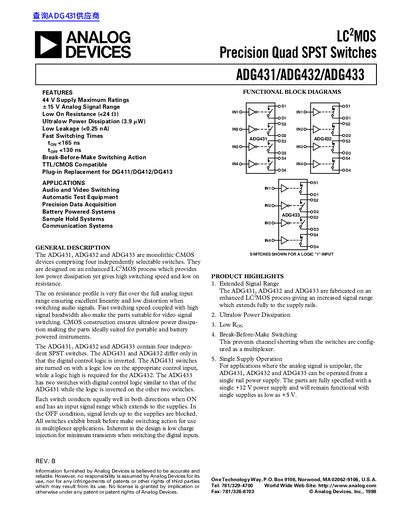

Analog Devices ADG431/ADG432/ADG433 Precision Quad SPST Switches Datasheet
The ADG431, ADG432, and ADG433 are monolithic CMOS devices comprising four independently selectable switches designed on an enhanced LC?MOS process. They feature low power dissipation, high switching speed, and low on-resistance, making them suitable for audio and video switching, automatic test equipment, and precision data acquisition systems. The devices offer an extended signal range extending fully to the supply rails and exhibit break-before-make switching action.
Read onlineAnalog Devices ADG431 specifications
| Analog Signal Range | Vpp to Vss |
|---|---|
| Source OFF Leakage | < 0.25 nA |
| Switching Time (ton) | < 165 ns |
| Power Dissipation | 3.9 pW |
| Supply Voltage Maximum | 44 V |
Source: Analog Devices ADG431/ADG432/ADG433 Precision Quad SPST Switches Datasheet
All Analog Devices ADG431 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum supply voltage?
The maximum supply voltage rating is 44 V.
From: Analog Devices ADG431/ADG432/ADG433 Precision Quad SPST Switches Datasheet
Are these devices compatible with DG411/DG412/DG413?
Yes, they are designed as plug-in replacements for DG411/DG412/DG413.
From: Analog Devices ADG431/ADG432/ADG433 Precision Quad SPST Switches Datasheet
What is the maximum supply voltage for the ADG431/ADG432/ADG433?
The devices are rated for a maximum dual supply of ±15 V (44 V total).
From: Analog Devices ADG431/ADG432/ADG433 Quad SPST Switches Datasheet
What is the typical on‑resistance of these switches?
Typical on‑resistance is 17 mΩ.
From: Analog Devices ADG431/ADG432/ADG433 Quad SPST Switches Datasheet
