Key facts
- Brand
- Analog Devices
- Model
- ADG412
- Industry
- Industrial
- Documents
- 2
- Languages
- EN
- Last added
- 2012-06-08
Start here

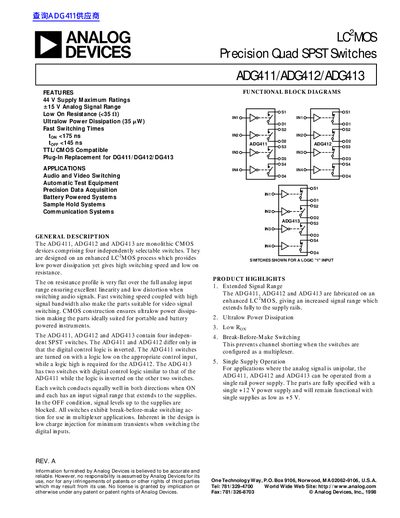

Analog Devices ADG411/ADG412/ADG413 Precision Quad SPST Switches Datasheet
The ADG411, ADG412, and ADG413 are monolithic CMOS devices comprising four independently selectable switches designed on an enhanced LC*MOS process. They feature low on-resistance, ultralow power dissipation, and fast switching times, making them suitable for audio and video switching, automatic test equipment, and battery-powered systems. The devices are fully specified with a single +12 V power supply and remain functional with supplies as low as +5 V.
Read onlineAnalog Devices ADG412 specifications
| Analog Signal Range | Vss to Vpp |
|---|---|
| On Resistance (Typical) | 25 Ω |
| On Resistance (Maximum) | 45 Ω |
| Operating Temperature (Industrial) | -40°C to +85°C |
| Operating Temperature (Extended) | -55°C to +125°C |
Source: Analog Devices ADG411/ADG412/ADG413 Precision Quad SPST Switches Datasheet
All Analog Devices ADG412 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Can these switches operate on a single power supply?
Yes, they can be operated from a single rail power supply, fully specified with a single +12 V supply.
From: Analog Devices ADG411/ADG412/ADG413 Precision Quad SPST Switches Datasheet
What is the typical on-resistance of the switches?
The typical on-resistance is 25 Ω.
From: Analog Devices ADG411/ADG412/ADG413 Precision Quad SPST Switches Datasheet
What is the on‑resistance of the ADG411/ADG412/ADG413?
The on‑resistance is less than 35 Ω.
From: Analog Devices ADG411/ADG412/ADG413 Quad SPST Switches Datasheet
What is the maximum supply voltage rating for these switches?
The devices are rated for a maximum supply voltage of 44 V.
From: Analog Devices ADG411/ADG412/ADG413 Quad SPST Switches Datasheet
