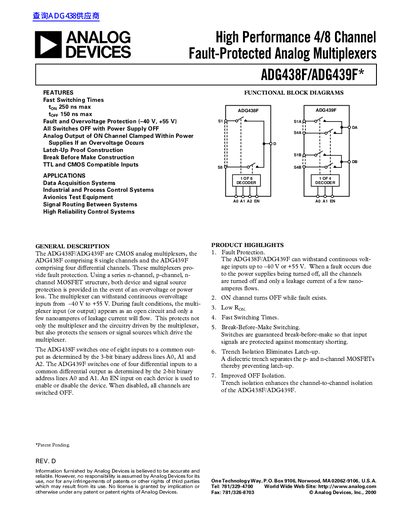

Analog Devices ADG438F/ADG439F Analog Multiplexer Datasheet
The ADG438F (8‑channel) and ADG439F (4‑channel differential) are CMOS analog multiplexers designed for high‑reliability applications such as data acquisition, industrial control, avionics test equipment and signal routing. They feature fast switching (tON 200 ns typical), break‑before‑make operation, low on‑resistance and built‑in fault protection that turns all channels off when an over‑voltage occurs.
Key specifications include a supply voltage range up to +44 V, continuous over‑voltage tolerance from –40 V to +55 V, typical on‑resistance of 400 Ω, source/off leakage currents as low as –0.01 nA, and an operating temperature range of –40 °C to +105 °C. The devices are offered in 16‑lead plastic DIP (N‑16) and SOIC (R‑16N, R‑16W) packages.
Analog Devices ADG438F specifications
| Maximum Supply Voltage (VDD to VSS) | +44 V |
|---|---|
| On Resistance (RON) | 400 Ω |
| Enable Turn‑On Delay (tON) | 200 ns typ |
| Source OFF Leakage Current | -0.01 nA typ |
| Operating Temperature Range | -40 °C to +105 °C |
Source: Analog Devices ADG438F/ADG439F Analog Multiplexer Datasheet
All Analog Devices ADG438F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many channels does each device have?
The ADG438F has eight single‑ended channels, while the ADG439F has four differential channels.
From: Analog Devices ADG438F/ADG439F Analog Multiplexer Datasheet
What is the typical enable turn‑on delay for these multiplexers?
The typical enable turn‑on delay (tON) is 200 ns.
From: Analog Devices ADG438F/ADG439F Analog Multiplexer Datasheet
What over‑voltage protection range do the ADG438F/ADG439F support?
They can withstand continuous over‑voltage inputs from –40 V to +55 V.
From: Analog Devices ADG438F/ADG439F Analog Multiplexer Datasheet
How many channels does the ADG438F provide?
The ADG438F comprises eight single‑ended channels.
From: Analog Devices ADG438F/ADG439F Analog Multiplexer Datasheet
What over‑voltage protection does the ADG438F/ADG439F provide?
The devices can withstand continuous over‑voltage inputs from –40 V to +55 V.
What is the typical on‑resistance of the switches?
The typical on‑resistance is 400 mΩ.
