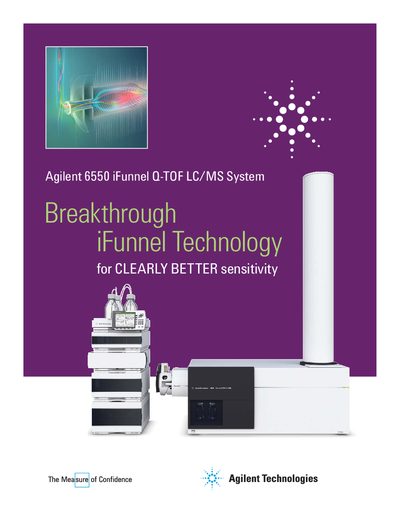

Agilent 6550 iFunnel Q-TOF LC/MS System Product Leaflet
The Agilent 6550 iFunnel Q-TOF LC/MS System incorporates breakthrough iFunnel technology to deliver the lowest detection levels of any high-resolution LC/MS instrument. It achieves low femtogram-level sensitivity with high resolution and accurate mass, making it ideal for pharmaceutical, metabolite ID, discovery proteomics, metabolomics, food safety, forensics, toxicology, and environmental screening applications.
Read onlineAgilent 6550 iFunnel Q-TOF specifications
| Resolving power | 40,000 |
|---|---|
| Mass accuracy | < 1 ppm |
| Detection limit | 0.006 pM |
| Flow rate | 150 uL/min |
| Drying gas temperature | 325 C |
| Capillary voltage | 3,500 V |
| Fragmentor voltage | 360 V |
| Skimmer voltage | 65 V |
| Oct RF Vpp | 750 V |
| Acquisition range | 50-1,000 m/z |
Source: Agilent 6550 iFunnel Q-TOF LC/MS System Application Note
All Agilent 6550 iFunnel Q-TOF documents by type
How to use the product for one specific task, with worked examples.
Questions answered in these manuals
What is the maximum data acquisition rate of the Agilent 6550 iFunnel Q-TOF LC/MS System?
The system enables exceedingly high data acquisition rates of up to 50 spectra per second.
From: Agilent 6550 iFunnel Q-TOF LC/MS System Product Leaflet
What mass resolution does the Agilent iFunnel technology maintain?
The system maintains a mass resolution of 40k while providing low femtogram-level sensitivity.
From: Agilent 6550 iFunnel Q-TOF LC/MS System Product Leaflet
What is the maximum data acquisition rate of the Agilent 6550 iFunnel Q-TOF LC/MS system?
The system enables data acquisition rates of up to 50 spectra per second.
From: Agilent 6550 iFunnel Q-TOF LC/MS System Product Brochure
What is the mass resolution capability of the Agilent 6550 iFunnel Q-TOF LC/MS system?
The system maintains a mass resolution of 40k.
From: Agilent 6550 iFunnel Q-TOF LC/MS System Product Brochure
What is the detection limit for MS/MS identification?
The system enables MS/MS identification of compounds at concentrations as low as 0.006 pM.
From: Agilent 6550 iFunnel Q-TOF LC/MS System Application Note
How does the 6550 system compare to the 6520 in terms of ion detection?
The 6550 system detects an order of magnitude more ions than the 6520 platform.
From: Agilent 6550 iFunnel Q-TOF LC/MS System Application Note
