Start here

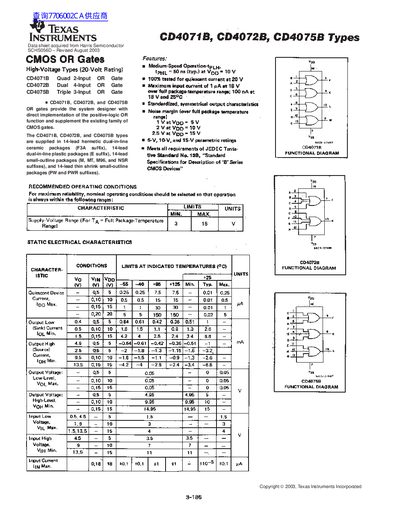

Harris Semiconductor SCHS056D Datasheet CD4071B/CD4072B/CD4075B
The document describes the CD4071B (Quad 2-Input OR Gate), CD4072B (Dual 4-Input OR Gate), and CD4075B (Triple 3-Input OR Gate). These devices provide the system designer with direct implementation of the positive-logic OR function and supplement the existing family of CMOS gates.
Read onlineTexas Instruments CD4071B specifications
| Product Function | positive-logic OR function |
|---|---|
| Package Drawing (CD4071BM96) | SOIC D |
| Package Drawing (CD4071BNSR) | SO NS |
| Package Drawing (CD4071BPWR) | TSSOP PW |
| Reel Diameter (SOIC/SO NS) | 330.0 mm |
| Reel Width (SOIC/SO NS) | 16.4 mm |
| Reel Width (TSSOP) | 12.4 mm |
| Pack Length | 346.0 mm |
| Pack Width | 346.0 mm |
| Pack Height (TSSOP) | 29.0 mm |
Source: Harris Semiconductor SCHS056D Datasheet CD4071B/CD4072B/CD4075B
All Texas Instruments CD4071B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What logic function do the CD4071B, CD4072B, and CD4075B OR gates provide?
These devices provide direct implementation of the positive-logic OR function.
From: Harris Semiconductor SCHS056D Datasheet CD4071B/CD4072B/CD4075B
What is the pin count for the CD4071B, CD4072B, and CD4075B packages?
All listed package types contain 14 pins.
From: Harris Semiconductor SCHS056D Datasheet CD4071B/CD4072B/CD4075B
What is the maximum supply voltage for these OR gates?
The maximum supply voltage is +20V.
From: Texas Instruments CD4071B/CD4072B/CD4075B CMOS OR Gates Datasheet
What is the typical propagation delay of these CMOS OR gates?
Typical propagation delay is 60 ns when powered at 10 V.
From: Texas Instruments CD4071B CD4072B CD4075B CMOS OR Gates Datasheet
What are the allowed input voltage limits?
Inputs may be driven from –0.8 V up to Vpp + 0.5 V.
From: Texas Instruments CD4071B CD4072B CD4075B CMOS OR Gates Datasheet
