Start here

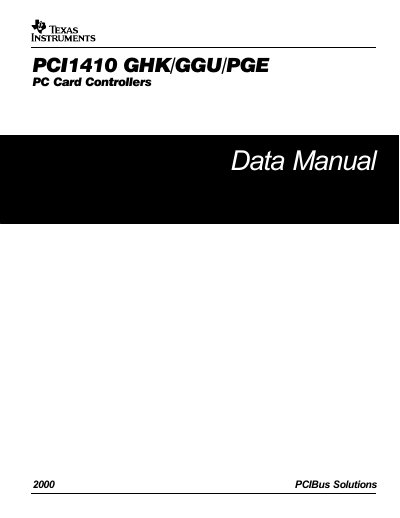

Texas Instruments PCI1410 Data Manual
This manual introduces the PCI1410 PC Card controller, describing its features, terminal assignments, and related documents. It includes detailed sections on power‑supply sequencing, I/O characteristics, PCI interface, and protocol implementations such as Serial Bus and DMA.
The document also contains programming model information, register maps, electrical characteristics, and mechanical package drawings for the GGU, GHK, and PGE variants. Additional sections cover power‑management, interrupt handling, and compliance with PCI and PC Card standards.
Texas Instruments PCI1410 specifications
| PCI Compliance | Fully compliant with PCI Local Bus Specification and 1997 PC Card Standard |
|---|---|
| Core Power Supply | 3.3 V (independent of clamping voltages) |
| Package Options | 144‑ball GGU BGA, 144‑pin PGE, 209‑ball GHK BGA |
All Texas Instruments PCI1410 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Which package types are available for the PCI1410?
It is offered in a 144‑ball GGU MicroStar BGA, a 144‑pin PGE, and a 209‑ball GHK MicroStar BGA.
Is the PCI1410 compliant with PCI specifications?
Yes, it is fully compliant with the PCI Local Bus Specification and the 1997 PC Card Standard.
What is the core supply voltage for the PCI1410A?
The core supply voltage is 3.3 V.
Can the PCI1410A operate with a 5‑V PCI bus?
Yes, the device can operate in a 5‑V signaling environment by connecting VCCP to 5 V.
