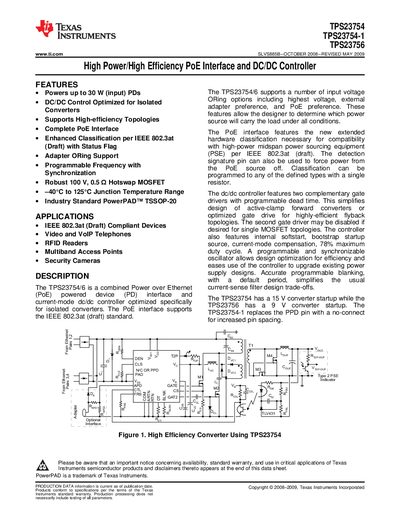

Texas Instruments TPS23754 / TPS23754-1 / TPS23756 High-Power PoE Interface DC/DC Controller Datasheet
The TPS23754 family combines a Power over Ethernet (PoE) powered‑device interface with a current‑mode DC/DC controller optimized for isolated converters. The devices support IEEE 802.3at (draft) classification, adapter ORing, and programmable frequency synchronization, making them suitable for high‑power PoE applications such as video phones, RFID readers, access points and security cameras.
Key features include up to 30 W input power, a wide operating temperature range of –40 °C to 125 °C, programmable dead‑time and duty‑cycle up to 78 %, and a PowerPAD™ TSSOP‑20 package. Electrical specifications cover input voltage ranges, switching frequency, and protection mechanisms such as ESD and over‑temperature shutdown.
Texas Instruments TPS2375 specifications
| Maximum Input Power | 30 W |
|---|---|
| Operating Temperature Range | -40 °C to 125 °C |
| Package Type | PowerPAD™ TSSOP‑20 |
All Texas Instruments TPS2375 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input power the device can handle?
The device can power up to 30 W (input) PDs.
What temperature range can the TPS23754 family operate in?
It operates from –40 °C to 125 °C junction temperature.
What is the input voltage range of the TPS23753?
The device operates with an input voltage from 0 V up to 57 V.
Which package does the TPS23753 use?
It is offered in a small 14‑pin TSSOP package.
