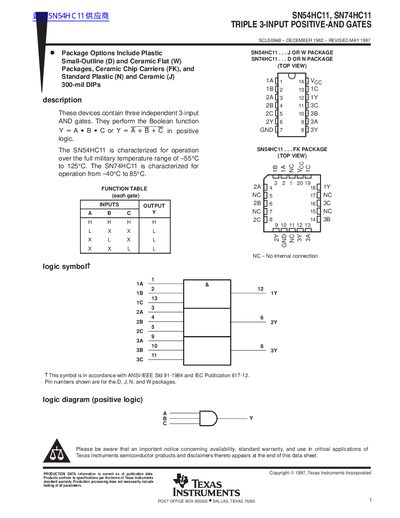

Texas Instruments SN54HC11, SN74HC11 Triple 3-Input Positive-AND Gates Datasheet
Datasheet 5 pages · 65 KB · EN
The document describes the SN54HC11 and SN74HC11 devices, which contain three independent 3-input positive-AND gates performing the Boolean function Y=A*B*C or Y=A+B+C. The SN54HC11 is characterized for operation over the military temperature range of -55°C to 125°C, while the SN74HC11 operates from -40°C to 85°C. Available package options include plastic, ceramic, and small-outline formats.
Read onlineTexas Instruments SN74HC11 specifications
| Supply voltage range | 2 V to 6 V |
|---|---|
| Output drive capability | Up to 10 LSTTL loads |
| Quiescent current (ICC) | 40 µA max |
| Typical propagation delay (tpd) | 13 ns |
All Texas Instruments SN74HC11 documents by type
Datasheet 2
Ratings, dimensions and ordering codes, for selection and design work.
