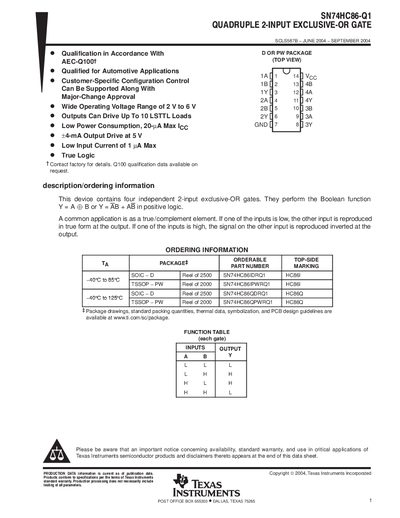

Texas Instruments SN74HC86-Q1 Datasheet
The SN74HC86-Q1 is a quadruple 2‑input exclusive‑OR (XOR) gate that implements the Boolean function Y = A ⊕ B for each of its four independent gates. It is commonly used as a true/complement element, reproducing the true or inverted form of an input depending on the state of the other input.
The datasheet includes electrical characteristics such as a recommended supply voltage of 2 V to 6 V, low power consumption (20 µA max), low input current (1 µA max), and output drive capabilities of up to +4 mA at 5 V or 10 LSTTL loads. Mechanical data and packaging options (SOIC and TSSOP) are also provided, along with ordering information and compliance notes.
Texas Instruments SN74HC86 specifications
| Supply voltage (VCC) | 2 V min – 6 V max |
|---|---|
| Low power consumption | 20 µA max |
| Low input current | 1 µA max |
| Output drive current | +4 mA at 5 V (up to 10 LSTTL loads) |
| Propagation delay (typical) | 25 ns at VCC = 6 V |
All Texas Instruments SN74HC86 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What logic function does the SN74HC86-Q1 perform?
It contains four independent 2‑input exclusive‑OR gates that implement the Boolean function Y = A ⊕ B.
What are the recommended supply voltage limits?
The recommended supply voltage range is 2 V to 6 V.
What is the supply voltage range for the SN54HC86/SN74HC86?
The devices operate from 2 V up to 6 V.
How many LSTTL loads can each output drive?
Each output can drive up to ten LSTTL loads.
What is the recommended supply voltage range for the SN74HC86‑Q1?
The device operates from 2 V to 6 V.
From: Texas Instruments SN74HC86-Q1 Quadruple 2-Input Exclusive-OR Gate Datasheet
How many exclusive‑OR gates are integrated in the SN74HC86‑Q1?
It contains four independent exclusive‑OR gates.
From: Texas Instruments SN74HC86-Q1 Quadruple 2-Input Exclusive-OR Gate Datasheet
