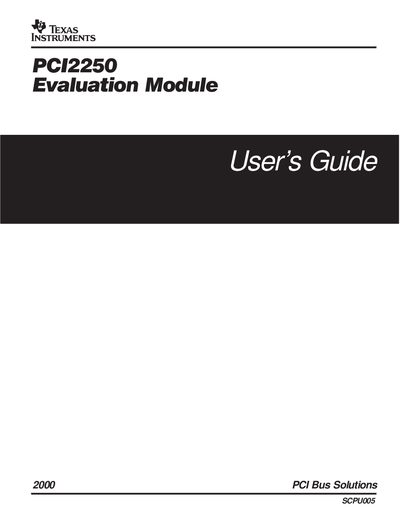

Texas Instruments PCI2250 Evaluation Module User's Guide
This manual assists users of the PCI2250 Evaluation Module (EVM) by describing parts, features, and operating requirements necessary to obtain maximum benefit from the device. It includes a bill of materials for the EVM kit and details on software requirements for PC systems running the module.
The document covers board configuration, including secondary bus masters, interrupt routing, jumper settings, mode select pins, and LED indicators. It also provides a detailed description of board components such as connectors, LEDs, fuses, and resistors.
All Texas Instruments PCI2250 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the purpose of this manual?
This manual assists users of the PCI2250 evaluation module by describing parts, features, and operating requirements necessary to obtain maximum benefit from its use.
From: Texas Instruments PCI2250 Evaluation Module User's Guide
What software is included with the EVM kit?
The evaluation kit includes one 3.5-inch diskette containing PCI Bus and PCIBus96 utility programs.
From: Texas Instruments PCI2250 Evaluation Module User's Guide
